• Country
• Bulgaria

• Manufacturer / Brand
• Resprom; Veliko Tarnovo

• Year
• 1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 225818

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH81 EBF89 ECL82 EM84

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1.5 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Koncertino - Концертино R-RM63 - Р-РМ63 - Resprom; Veliko Tarnovo

• Shape
• Tablemodel with Push Buttons.

• Notes

• Wave Bands:
  MW: 520-1600 kHz
  LW: 145-350 kHz
  SW: 5,8-18 MHz

• Mentioned in

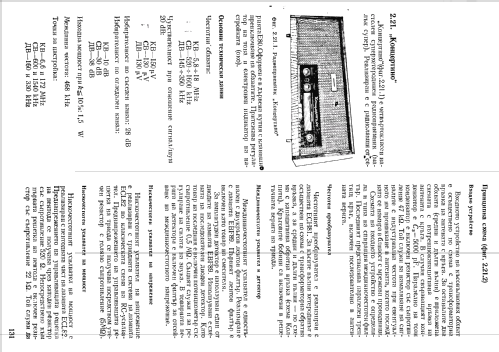

• book "Bulgarian Radio Receivers"

• Author
• Model page created by Simeon Nikolov. See "Data change" for further contributors.
