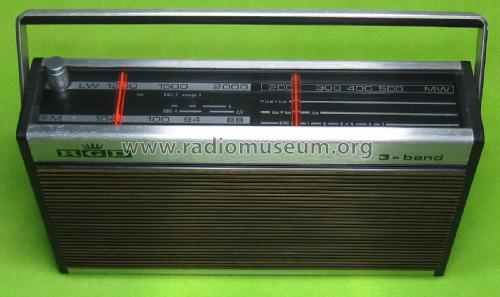

RGD, Radio: 3 Band R135 [Radio] ID = 2291493 1200x870
Select picture or schematic to display from thumbnails on the right and click for download.
For model 3 Band R135, RGD, Radio Gramophone Development; Birmingham

Country:  Great Britain (UK)
Manufacturer / Brand:  RGD, Radio Gramophone Development; Birmingham
Year: 1972 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: 2SC784 2SC785 2SC381 CS1312 2SC381 CS1312 LM1410 LM1404 LM1403
Main principle Super-Heterodyne (Super in general); ZF/IF 470/10700 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.4 W (unknown quality)
from Radiomuseum.org Model: 3 Band R135 - RGD, Radio Gramophone
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 216 x 125 x 52 mm / 8.5 x 4.9 x 2 inch
Notes

Although the appearance is quite different, this radio appears to be the same chassis as the ITT Colt

Price in first year of sale 15.73 GBP
Source of data - - Manufacturers Literature
