- Country
- Great Britain (UK)
- Manufacturer / Brand
- RGD (Brand), Radio Gramophone Development Co. Ltd.; Birmingham
- Year
- 1956 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 126760
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- AC/DC-set / 200-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Various materials
- from Radiomuseum.org

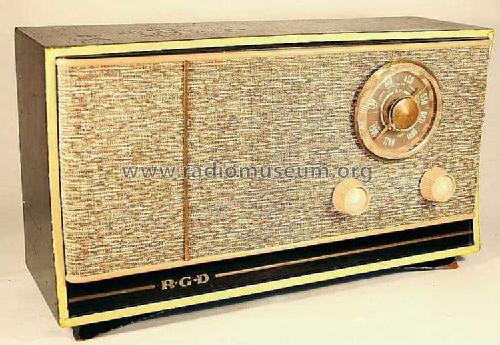

- Model: A35 - RGD Brand, Radio Gramophone
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 14.5 x 8.25 x 5.5 inch / 368 x 210 x 140 mm
- Notes
- Same chassis as models A33, AP33, DW1, & DP2.
- Net weight (2.2 lb = 1 kg)
- 2.8 kg / 6 lb 2.7 oz (6.167 lb)
- Price in first year of sale
- 9.00 GBP
- Source of data
- - - Data from my own collection
- Author
- Model page created by Keith Staines. See "Data change" for further contributors.
