Carry Corder TC350

Carry Corder TC350; RGD, Radio (ID = 1581909) R-Player

Carry Corder TC350; RGD, Radio (ID = 1581911) R-Player

Carry Corder TC350; RGD, Radio (ID = 1581912) R-Player

Carry Corder TC350; RGD, Radio (ID = 1581913) R-Player

Carry Corder TC350; RGD, Radio (ID = 1581915) R-Player

Carry Corder TC350; RGD, Radio (ID = 1581916) R-Player

Carry Corder TC350; RGD, Radio (ID = 1581917) R-Player

Carry Corder TC350; RGD, Radio (ID = 1581918) R-Player

Carry Corder TC350; RGD, Radio (ID = 1581919) R-Player

Carry Corder TC350; RGD, Radio (ID = 1581920) R-Player
Carry Corder TC350; RGD, Radio (ID = 2159602) R-Player Carry Corder TC350; RGD, Radio (ID = 2159603) R-Player
Carry Corder TC350; RGD, Radio (ID = 2159604) R-Player Carry Corder TC350; RGD, Radio (ID = 2159605) R-Player
Carry Corder TC350; RGD, Radio (ID = 2159606) R-Player Carry Corder TC350; RGD, Radio (ID = 2159607) R-Player
Carry Corder TC350; RGD, Radio (ID = 1580666) R-Player
Use red slider bar for more.

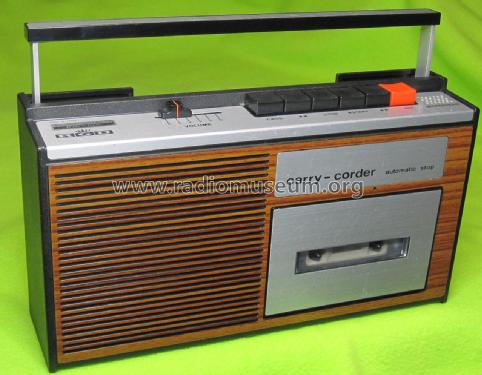

Carry Corder TC350; RGD, Radio (ID = 2159602) R-Player
RGD, Radio: Carry Corder TC350 [R-Player] ID = 2159602 1280x994
Select picture or schematic to display from thumbnails on the right and click for download.
For model Carry Corder TC350, RGD, Radio Gramophone Development; Birmingham

Country:  Great Britain (UK)
Manufacturer / Brand:  RGD, Radio Gramophone Development; Birmingham
Year: 1975 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 9: 2SC1344 2SC458 2SC458 2SC458 2SB534 2SB534 2SC281 2SC458 2SC458
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 110-150; 200-240 / 4 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.7 cm = 3 inch
Power out 1 W (max.)
from Radiomuseum.org Model: Carry Corder TC350 - RGD, Radio Gramophone
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 282 x 151 x 71 mm / 11.1 x 5.9 x 2.8 inch
Notes

Made in Japan

Model page created by Mike Edwards. See "Data change" for further contributors.
