Entzerrer-Baustein EV1

Entzerrer-Baustein EV1; RIM bzw. Radio-RIM; (ID = 1724924) mod-past25

Entzerrer-Baustein EV1; RIM bzw. Radio-RIM; (ID = 1724926) mod-past25

Entzerrer-Baustein EV1; RIM bzw. Radio-RIM; (ID = 1724927) mod-past25
Entzerrer-Baustein EV1; RIM bzw. Radio-RIM; (ID = 1724710) mod-past25
Use red slider bar for more.
Entzerrer-Baustein EV1; RIM bzw. Radio-RIM; (ID = 1724710) mod-past25

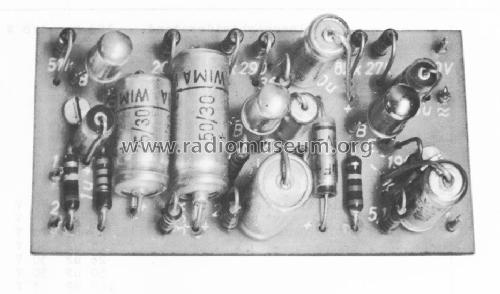

RIM bzw. Radio-RIM;: Entzerrer-Baustein EV1 [mod-past25] ID = 1724710 933x549
Select picture or schematic to display from thumbnails on the right and click for download.
For model Entzerrer-Baustein EV1, RIM bzw. Radio-RIM; München:
Das Bild entstammt einer RIM-Bauanleitung.

Country:  Germany
Manufacturer / Brand:  RIM bzw. Radio-RIM; München
Brand

Radiola-Industrie GmbH
Year: 1963 Category: Radio module post 1925 (not a part, not a key)
Semiconductors (the count is only for transistors) 3: AC151rV AC151rV AC151rV
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Powered by external power supply or a main unit. / DC-30 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Entzerrer-Baustein EV1 - RIM bzw. Radio-RIM; München
Material Printed Circuit Board
Shape Chassis only or for «building in»
Dimensions (WHD) 70 x 35 x 30 mm / 2.8 x 1.4 x 1.2 inch
Notes

Entzerrer-Vorverstärker für elektrodynamische Tonabnehmer. 3 rauscharme Transistoren AC151rV. Betriebsspannung -24 bis -30V.

Mentioned in -- Original-techn. papers.

Model page created by Manfred Rauschen. See "Data change" for further contributors.
