• Country
• Germany

• Manufacturer / Brand
• RIM bzw. Radio-RIM; München

• Year
• 1951 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 103996

• • Brand: Radiola-Industrie GmbH

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• RV2,4P700 RV2,4P700

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown); 1 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 4 × 4,5 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

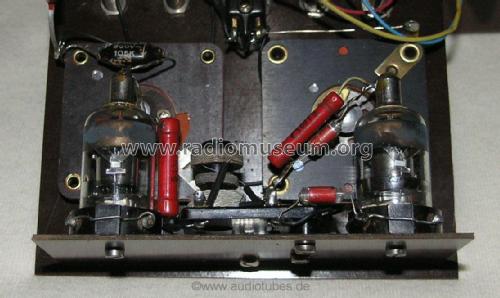

• Model: Piccolo - RIM bzw. Radio-RIM; München

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 200 x 140 x 90 mm / 7.9 x 5.5 x 3.5 inch

• Notes
• Bausatzpreis mit Röhren zu 15,- DM; Kassette mit Überzugstoff 10,- DM. Preis ist komletter Bausatz mit fertig bezogener Kassette, Batterien und Kopfhörer. Gewicht mit Batterien.

• Net weight (2.2 lb = 1 kg)
• 1.2 kg / 2 lb 10.3 oz (2.643 lb)

• Price in first year of sale
• 42.00 DM

• Mentioned in
• RIM Bastel-Jahrbuch 1951

• Author
• Model page created by Otto Frosinn. See "Data change" for further contributors.
