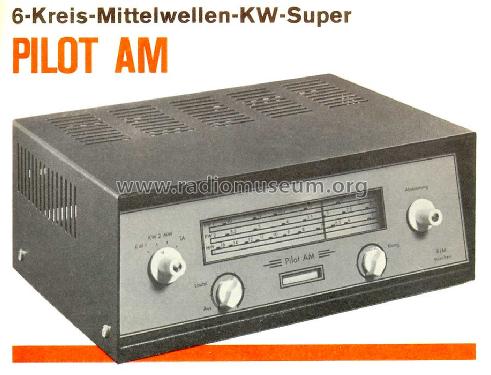

Pilot AM 2x KW
RIM bzw. Radio-RIM; München
- Country
- Germany
- Manufacturer / Brand
- RIM bzw. Radio-RIM; München
- Year
- 1962/1963
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 199235
-
- Brand: Radiola-Industrie GmbH
Quelle: ebay

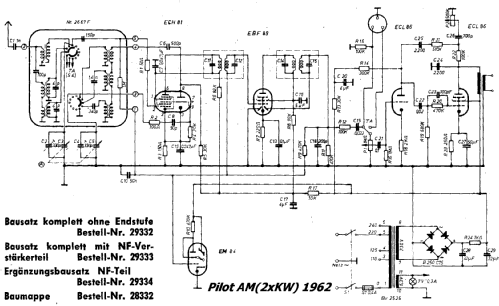

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 450 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 220; 240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 3 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Pilot AM [2x KW] - RIM bzw. Radio-RIM; München
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 300 x 110 x 220 mm / 11.8 x 4.3 x 8.7 inch
- Notes
- Bausatzempfänger für MW und 2x KW, 520-1600 kHz, 2,3-7 und 7-20 MHz.
In der Ausführung von 1963 wird laut Schaltplan statt der EBF89
eine EF89 und 2x OA81 eingesetzt! Komplettbausatzpreis 1963.
- Net weight (2.2 lb = 1 kg)
- 5.1 kg / 11 lb 3.7 oz (11.233 lb)
- Price in first year of sale
- 170.00 DM
- Mentioned in
- RIM-Bastelbuch 1962, S. 79-81.
- Literature/Schematics (1)
- RIM-Bastelbuch 1963, S.89-91.
- Author
- Model page created by Otto Frosinn. See "Data change" for further contributors.
