• Year
  • 2000 ??
  • Category
  • RF (Radio Frequency-) Amplifier
  • Radiomuseum.org ID
  • 269616

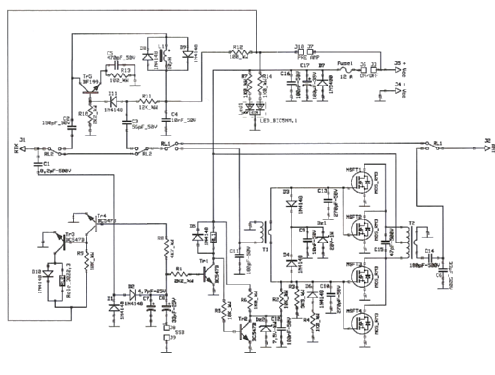

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Radio Frequency Amplification only
  • Wave bands
  • Short Wave (SW only)
  • Power type and voltage
  • Powered by external power supply or a main unit. / 12 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: HF Linear Amplifier KL203P - RM Costruzioni Elettroniche s.
  • Dimensions (WHD)
  • 109 x 35 x 125 mm / 4.3 x 1.4 x 4.9 inch
  • Notes
  • Solid State High Frequency AM-FM-SSB linear Amplifier; Frequency Range 20MHz to 30MHz; Voltage Supply 12VDC to 14VDC; Input SWR 1.1 to 1.3; Input RF Power 0,5W to 10W AM-FM, 1w to 20W pep SSB; Output RF Power 100W AM-FM, 200W SSB; Maximum Supply Current 10A; Electronic RX/TX Switch; Inverse Polarity Protection; Preamplifier 25dB on reception.

  • Net weight (2.2 lb = 1 kg)
  • 0.330 kg / 0 lb 11.6 oz (0.727 lb)
  • Mentioned in
  • -- Original-techn. papers.
  • Author
  • Model page created by Emilio Focosi. See "Data change" for further contributors.
