R757

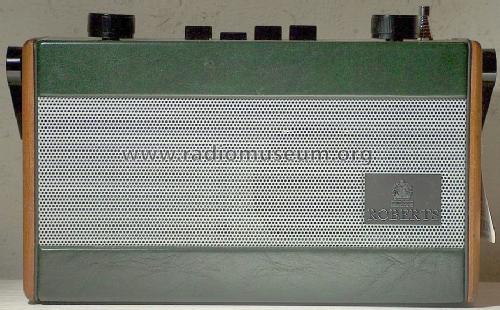

R757; Roberts Radio Co.Ltd (ID = 1178186) Radio R757; Roberts Radio Co.Ltd (ID = 1178187) Radio
R757; Roberts Radio Co.Ltd (ID = 1178188) Radio R757; Roberts Radio Co.Ltd (ID = 1178189) Radio
R757; Roberts Radio Co.Ltd (ID = 1178190) Radio R757; Roberts Radio Co.Ltd (ID = 2059856) Radio

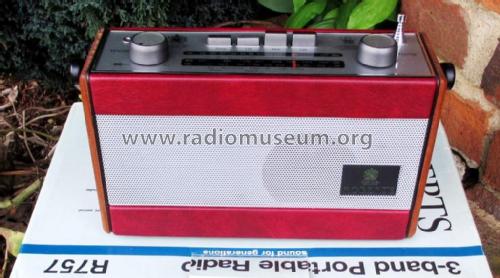

R757; Roberts Radio Co.Ltd (ID = 2082016) Radio R757; Roberts Radio Co.Ltd (ID = 2082017) Radio
R757; Roberts Radio Co.Ltd (ID = 2082018) Radio
Use red slider bar for more.
R757; Roberts Radio Co.Ltd (ID = 1178186) Radio
Roberts Radio Co.Ltd: R757 [Radio] ID = 1178186 933x338
Select picture or schematic to display from thumbnails on the right and click for download.
For model R757, Roberts Radio Co.Ltd., East Molesey, Surrey, UK

Country:  Great Britain (UK)
Manufacturer / Brand:  Roberts Radio Co.Ltd., East Molesey, Surrey, UK
Year: 1996 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Batteries / addl. power jack / 6 x 1,5 / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.8 W (1 W max.)
from Radiomuseum.org Model: R757 - Roberts Radio Co.Ltd., East
Material Special material, described in the notes.
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 220 x 125 x 70 mm / 8.7 x 4.9 x 2.8 inch
Notes

Material: Leather, wood, metal and plastic. Earphone jack. Ext. DC jack.
Available colours: black, blue, red, green.

Internal layout and circuitry identical to Revival R250.

Net weight (2.2 lb = 1 kg) 0.840 kg / 1 lb 13.6 oz (1.85 lb)
Source of data - - Manufacturers Literature

Model page created by Dirk Okoniewski. See "Data change" for further contributors.
