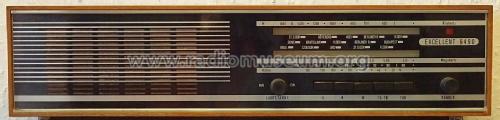

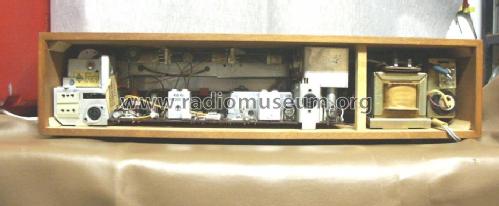

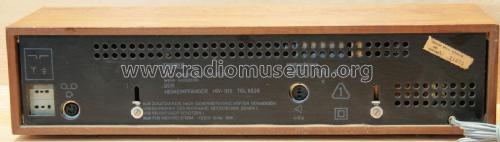

Excellent 6490; Robotron Radeberg, (ID = 1112466) Radio
Robotron Radeberg,: Excellent 6490 [Radio] ID = 1112466 933x384
Select picture or schematic to display from thumbnails on the right and click for download.
For model Excellent 6490, Robotron Radeberg, VEB; Radeberg (Ostd:):
Serien Nr.;49932

Country:  Germany
Manufacturer / Brand:  Robotron Radeberg, VEB; Radeberg (Ostd:)
Year: 1974 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: Selen
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Excellent 6490 - Robotron Radeberg, VEB;
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 475 x 110 x 140 mm / 18.7 x 4.3 x 5.5 inch
Notes

Excellent 6490 wurde im VEB Stern-Radio Sonneberg entwickelt und in die Fertigung zu Robotron Radeberg übergeleitet. Dort wurden insgesamt 65000 Geräte gefertigt.

Unterlagen siehe beim Modell von Stern-Radio Sonneberg.



Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Mentioned in -- Original prospect or advert

Model page created by Wolfgang Eckardt. See "Data change" for further contributors.



All listed radios etc. from Robotron Radeberg, VEB; Radeberg (Ostd:)
Here you find 39 models, 30 with images and 13 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
