Prominent 5

Prominent 5; Robotron-Elektronik (ID = 305213) Radio

Prominent 5; Robotron-Elektronik (ID = 305214) Radio

Prominent 5; Robotron-Elektronik (ID = 305215) Radio

Prominent 5; Robotron-Elektronik (ID = 305216) Radio

Prominent 5; Robotron-Elektronik (ID = 305218) Radio

Prominent 5; Robotron-Elektronik (ID = 305220) Radio

Prominent 5; Robotron-Elektronik (ID = 305221) Radio

Prominent 5; Robotron-Elektronik (ID = 305222) Radio

Prominent 5; Robotron-Elektronik (ID = 305223) Radio

Prominent 5; Robotron-Elektronik (ID = 1983028) Radio
Prominent 5; Robotron-Elektronik (ID = 2254420) Radio Prominent 5; Robotron-Elektronik (ID = 2254419) Radio
Prominent 5; Robotron-Elektronik (ID = 2254422) Radio Prominent 5; Robotron-Elektronik (ID = 2254421) Radio
Prominent 5; Robotron-Elektronik (ID = 2254423) Radio Prominent 5; Robotron-Elektronik (ID = 2254424) Radio
Prominent 5; Robotron-Elektronik (ID = 392870) Radio Prominent 5; Robotron-Elektronik (ID = 392872) Radio
Prominent 5; Robotron-Elektronik (ID = 392871) Radio Prominent 5; Robotron-Elektronik (ID = 240772) Radio
Use red slider bar for more.
Prominent 5; Robotron-Elektronik (ID = 2254420) Radio
Robotron-Elektronik: Prominent 5 [Radio] ID = 2254420 1400x576

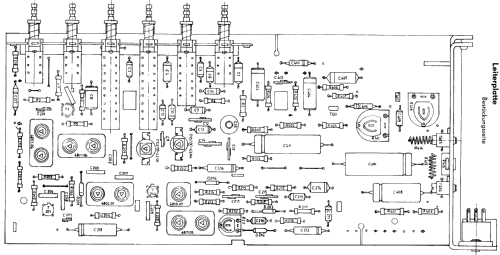

Select picture or schematic to display from thumbnails on the right and click for download.
For model Prominent 5, Robotron-Elektronik Zella-Mehlis, VEB; Zella-Mehlis /Thür. (Ostd.)

Country:  Germany
Manufacturer / Brand:  Robotron-Elektronik Zella-Mehlis, VEB; Zella-Mehlis /Thür. (Ostd.)
Brand

Rechenelektr. Meining./ Zella
Year: 1972 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: ГТ313 ГТ322 ГТ322 ГТ322 ГТ322 SC207 SC206 AC187 AC188 B20C25 M25/10-0,36
Main principle Superheterodyne (common)
Tuned circuits 5 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 1.6 W (unknown quality)
from Radiomuseum.org Model: Prominent 5 - Robotron-Elektronik Zella-
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 500 x 145 x 165 mm / 19.7 x 5.7 x 6.5 inch
Notes Mittelsuper. Schieberegler für Klang und Lautstärke. auch Plastgehäuse
Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
Price in first year of sale 445.00 DM
Source of data -- Collector info (Sammler)

Model page created by Wolfgang Lill. See "Data change" for further contributors.
