Werra RR1271; Robotron-Elektronik (ID = 116082) Radio

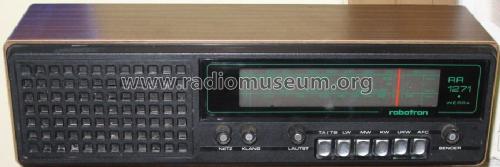

Robotron-Elektronik: Werra RR1271 [Radio] ID = 116082 933x423
Select picture or schematic to display from thumbnails on the right and click for download.
For model Werra RR1271, Robotron-Elektronik Zella-Mehlis, VEB; Zella-Mehlis /Thür. (Ostd.)

Country:  Germany
Manufacturer / Brand:  Robotron-Elektronik Zella-Mehlis, VEB; Zella-Mehlis /Thür. (Ostd.)
Brand

Rechenelektr. Meining./ Zella
Year: 1979 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 4:
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Tuned circuits 3 AM circuit(s)     7 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Werra RR1271 - Robotron-Elektronik Zella-
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 504 x 146 x 156 mm / 19.8 x 5.7 x 6.1 inch
Notes

Bei dem Gerät im Holzgehäuse mit mattschwarzer Plastikfront handelt es sich um die Weiterentwicklung (Abwandlung) des RR1201 Progress mit veränderter Frontgestaltung und anderen Gehäusen, aber gleichem Chassis. Schaltbare AFC, Anschlüsse für TA/TB; Mischbestückung mit 4 Transistoren und 3 IC.

Unterschiede RR1271 und RR1272 nur in der Gehäusegestaltung (Softline bzw. eckig)

Als Exportmodell auch über bruns vertrieben - siehe Modell Werra RR1272

Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
Price in first year of sale 500.00 DM
Source of data -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb
Mentioned in -- Original prospect or advert

Model page created by Dieter Erdmann. See "Data change" for further contributors.
