FM Tuner T75 Series 2

FM Tuner T75 Series 2; Rogers, Catford see (ID = 2396317) Radio FM Tuner T75 Series 2; Rogers, Catford see (ID = 2396319) Radio
FM Tuner T75 Series 2; Rogers, Catford see (ID = 2396320) Radio
Use red slider bar for more.
FM Tuner T75 Series 2; Rogers, Catford see (ID = 2396317) Radio
Rogers, Catford see: FM Tuner T75 Series 2 [Radio] ID = 2396317 1100x400
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM Tuner T75 Series 2, Rogers, Catford (see also Rogers Birmingham):
Sold on Canuck Audio Mart item #649470809 seller dcm60

Country:  Great Britain (UK)
Manufacturer / Brand:  Rogers, Catford (see also Rogers Birmingham)
Year: 1978 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle PLL, Phase-locked loop
Wave bands FM Broadcast Band Only
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 110-120 or 220-240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: FM Tuner T75 Series 2 - Rogers, Catford see also
Material Various materials
Shape Book-shelf unit.
Dimensions (WHD) 362 x 117 x 286 mm / 14.3 x 4.6 x 11.3 inch
Notes

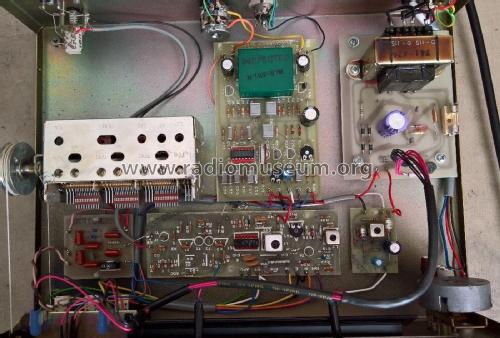

A hi-fi stereo FM tuner housed in a metal case with either teak or walnut end panels, to  complement the Rogers Panthera A75 integrated stereo amplifier. Features include a 4 gang FET input front end incorporating 2 dual-gate FETs, PLL decoder, variable output, inter-station noise suppression (mute), stabilised power supply, switches for mono and AFC, indicators for signal strength, stereo and centre tune, and a switchable sensitivity attenuator for reception in strong signal areas.

Specification
FM Frequency Range:                          88-108MHz.
Sensitivity:                                          1µV IHF (30dB Quieting).
Capture Ratio:                                     1.5dB.
IF Rejection:                                       > 80dB.
Image Rejection:                                 > 60dB.
Alternate Channel Selectivity:               > 60dB  ± 400KHz.
Frequency Response:                          25Hz-15kHz ±-1dB.
Stereo Separation:                               > 40dB at 1KHz.
Distortion 100% Modulation:                 < 0.3% Mono, < 0.7% Stereo.
Output Level 30% Modulation at 1KHz:  0-300mV variable.
Semiconductors:                                  2 ICs, 1 FET, 14 Transistors, 11 diodes.

Power Requirements
110-120 or 220-240 volts AC 50/60 Hz Internally switchable





Net weight (2.2 lb = 1 kg) 4.9 kg / 10 lb 12.7 oz (10.793 lb)
Mentioned in -- Original prospect or advert (Review and Advertisement in Popular Hi-Fi (UK) January 1979)
Literature/Schematics (1) - - Manufacturers Literature (The Rogers T75 Series 2 FM Tuner Service Manual)

Model page created by Howard Craven. See "Data change" for further contributors.
