• Year
  • 1939/1940
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 166940
    • alternative name: Rogers Radio Tube

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superhet with RF-stage; ZF/IF 456 kHz; 1 AF stage(s)
  • Tuned circuits
  • 4 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage and/or dry batteries / 1.5; 90 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • from Radiomuseum.org
  • Model: Majestic 941 Ch= 9M451 - Rogers-Majestic, Standard
  • Notes
  • This set is electrically identical to the Rogers 14/41 and the De Forest Palliser.

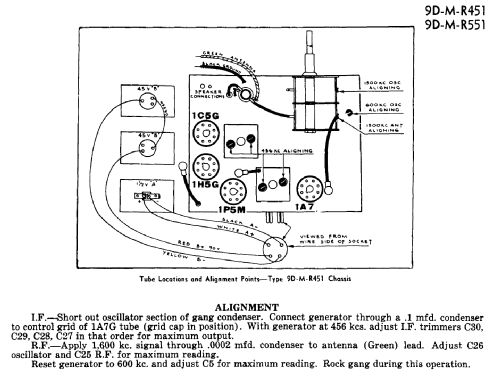

  • Circuit diagram reference
  • Radio College of Canada
  • Mentioned in
  • RCC Rogers-Majestic section, pages 52 & Cross-Reference
  • Author
  • Model page created by Robin Roeckers. See "Data change" for further contributors.
