Rogers 12-54 Ch= 7R561

Rogers 12-54 Ch= 7R561; Rogers-Majestic, (ID = 663301) Radio
Use red slider bar for more.
Rogers 12-54 Ch= 7R561; Rogers-Majestic, (ID = 663301) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Canada
Manufacturer / Brand:  Rogers-Majestic, Standard Radio Manufacturing, Rogers Radio Tubes; Toronto
alternative name

Rogers Radio Tube
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 1C7M 34M 34M 1F7M 1F5G
Main principle Super-Heterodyne (Super in general); ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Storage and/or dry batteries / 2 & 135 & 9 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: Rogers 12-54 Ch= 7R561 - Rogers-Majestic, Standard
Notes The Rogers 12-59, Majestic 754, 759, De Forest Yukon and Hudson are electronically identical to this model.

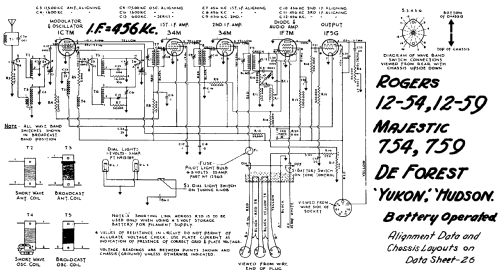

Circuit diagram reference Radio College of Canada
Mentioned in RCC Rogers-Majestic section page 25, 26 & Cross Reference

Model page created by Robin Roeckers. See "Data change" for further contributors.
