Aktive Richtantenne HE100

Aktive Richtantenne HE100; Rohde & Schwarz, PTE (ID = 2457999) Antenna

Aktive Richtantenne HE100; Rohde & Schwarz, PTE (ID = 2458000) Antenna

Aktive Richtantenne HE100; Rohde & Schwarz, PTE (ID = 2458001) Antenna

Aktive Richtantenne HE100; Rohde & Schwarz, PTE (ID = 2458002) Antenna

Aktive Richtantenne HE100; Rohde & Schwarz, PTE (ID = 2458003) Antenna

Aktive Richtantenne HE100; Rohde & Schwarz, PTE (ID = 2458004) Antenna

Aktive Richtantenne HE100; Rohde & Schwarz, PTE (ID = 2458005) Antenna

Aktive Richtantenne HE100; Rohde & Schwarz, PTE (ID = 2458006) Antenna

Aktive Richtantenne HE100; Rohde & Schwarz, PTE (ID = 2458007) Antenna

Aktive Richtantenne HE100; Rohde & Schwarz, PTE (ID = 2458008) Antenna
Use red slider bar for more.
Aktive Richtantenne HE100; Rohde & Schwarz, PTE (ID = 2457999) Antenna
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Germany
Manufacturer / Brand:  Rohde & Schwarz, PTE; München
alternative name

Messgerätebau Memmingen || Physikalisch-Technisches Entwicklungslabor Dr. Rohde & Dr. Schwarz
Year: 1986 ? Category: Antenna (Aerial) or Coupler
Main principle Radio Frequency Amplification only
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Storage and/or dry batteries / AA: 4 x 1.2 / 4 x 1.5 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Aktive Richtantenne HE100 - Rohde & Schwarz, PTE; München
Material Plastics (no bakelite or catalin)
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 470 x 180 x 360 mm / 18.5 x 7.1 x 14.2 inch
Notes

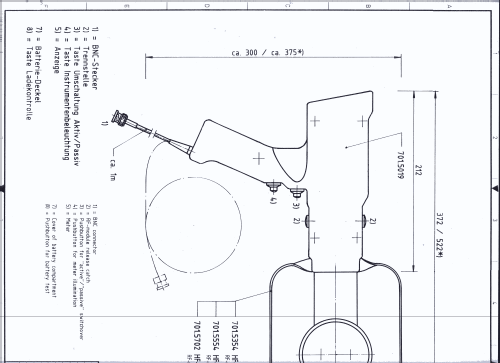

Aktive Richtantenne für den Einsatz als Handpeilantenne zur Ortung von Störquellen.

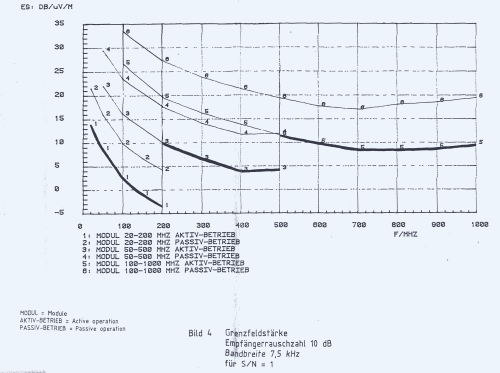

Frequnzbereich: 20-1000 MHz mit 3 auwechselbaren Modulen
Die angegebenen Abmessungen sind die Maße des Transportkoffers.
Gesamtgewicht mit Transportkoffer: 4,50 kg

Net weight (2.2 lb = 1 kg) 4.5 kg / 9 lb 14.6 oz (9.912 lb)
