Antenna Coupler CMU-Z11 + CMU-Z10 1150.1008.02 + 1150.0801.10

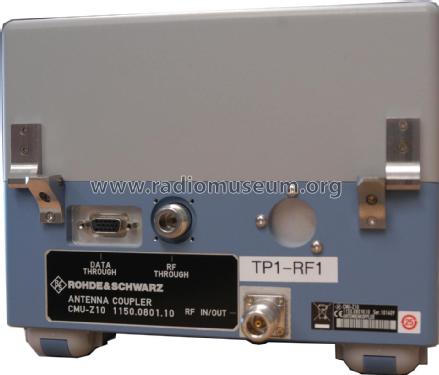

Antenna Coupler CMU-Z11 + CMU-Z10 1150.1008.02 + 1150.0801.10; Rohde & Schwarz, PTE (ID = 2142286) Equipment Antenna Coupler CMU-Z11 + CMU-Z10 1150.1008.02 + 1150.0801.10; Rohde & Schwarz, PTE (ID = 2142287) Equipment
Use red slider bar for more.
Antenna Coupler CMU-Z11 + CMU-Z10 1150.1008.02 + 1150.0801.10; Rohde & Schwarz, PTE (ID = 2142286) Equipment
Rohde & Schwarz, PTE: Antenna Coupler CMU-Z11 + CMU-Z10 1150.1008.02 + 1150.0801.10 [Equipment] ID = 2142286 1400x1958
Select picture or schematic to display from thumbnails on the right and click for download.
For model Antenna Coupler CMU-Z11 + CMU-Z10 1150.1008.02 + 1150.0801.10, Rohde & Schwarz, PTE; München

Country:  Germany
Manufacturer / Brand:  Rohde & Schwarz, PTE; München
alternative name

Messgerätebau Memmingen || Physikalisch-Technisches Entwicklungslabor Dr. Rohde & Dr. Schwarz
Year: 2000 ? Category: Service- or Lab Equipment
Main principle none
Wave bands Wave Bands given in the notes.
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Antenna Coupler CMU-Z11 + CMU-Z10 1150.1008.02 + 1150.0801.10 - Rohde & Schwarz, PTE; München
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 180 x 250 x 430 mm / 7.1 x 9.8 x 16.9 inch
Notes

Broadband Antenna Coupler (CMU-Z10)

A λ/4 radiator vertically mounted on the mobile phone generates a vertically polarized electromagnetic field. The coupling element in the R&S®CMU-Z10 is arranged such that a mobile phone with a vertically mounted λ/4 radiator achieves minimum coupling attenuation. The coupler is of asymmetric design so that measurements can also be performed on mobile phones with horizontal polarization./ RF Shielding Cover (CMU-Z11)

The active coupling zone for frequencies from 770 MHz to 960 MHz, the green circle that for frequencies from 1.7 GHz to 2.2 GHz. Depending
on the radiation center of the phone, the optimum position is different for each model. Since the coupling zone is a defined area, the phone can be shifted somewhat out of the optimum position without dramatically increasing coupling attenuation. These zones are marked on the coupler by means of the antenna elements, which are visible through the  transparent base plate.

Coupling Factor
770 MHz to 960 MHz: 5 dB to 8 dB
1700 MHz to 2200 MHz: 10 dB to 15 dB

Connectors
RF IN/OUT and RF Through:  N female
Data through: 15-pin HDD female filter adapter

Net weight (2.2 lb = 1 kg) 4.8 kg / 10 lb 9.2 oz (10.573 lb)
