Antennenfilter HA70/1

Antennenfilter HA70/1; Rohde & Schwarz, PTE (ID = 2266306) Antenna Antennenfilter HA70/1; Rohde & Schwarz, PTE (ID = 2266307) Antenna
Antennenfilter HA70/1; Rohde & Schwarz, PTE (ID = 2266308) Antenna Antennenfilter HA70/1; Rohde & Schwarz, PTE (ID = 2266309) Antenna

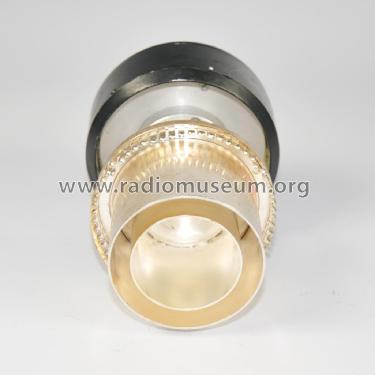

Antennenfilter HA70/1; Rohde & Schwarz, PTE (ID = 2266311) Antenna Antennenfilter HA70/1; Rohde & Schwarz, PTE (ID = 2266312) Antenna
Antennenfilter HA70/1; Rohde & Schwarz, PTE (ID = 2266313) Antenna Antennenfilter HA70/1; Rohde & Schwarz, PTE (ID = 2266315) Antenna
Antennenfilter HA70/1; Rohde & Schwarz, PTE (ID = 2266316) Antenna Antennenfilter HA70/1; Rohde & Schwarz, PTE (ID = 2266318) Antenna
Use red slider bar for more.
Antennenfilter HA70/1; Rohde & Schwarz, PTE (ID = 2266306) Antenna
Rohde & Schwarz, PTE: Antennenfilter HA70/1 [Antenna] ID = 2266306 1399x1399
Select picture or schematic to display from thumbnails on the right and click for download.
For model Antennenfilter HA70/1, Rohde & Schwarz, PTE; München:

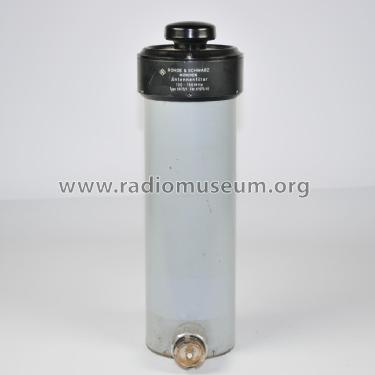

Gesamtansicht

Country:  Germany
Manufacturer / Brand:  Rohde & Schwarz, PTE; München
alternative name

Messgerätebau Memmingen || Physikalisch-Technisches Entwicklungslabor Dr. Rohde & Dr. Schwarz
Year: 1956 ?? Category: Antenna (Aerial) or Coupler
Main principle RF-Circuit or wave trap (separate, can also be an antenna with amp.)
Wave bands FM Broadcast Band Only
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Antennenfilter HA70/1 - Rohde & Schwarz, PTE; München
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 100 x 320 x 160 mm / 3.9 x 12.6 x 6.3 inch
Notes

Topfkreisfilter/Antennenfilter, Durchlassfrequenz einstellbar 100 ... 150 MHz

Durchlassbreite (Kopplung, Güte) über festklemmbares Rändelrad im Boden einstellbar.
Anschlüsse über Dezifix-Armaturen.

Siehe auch Rohde & Schwarz koaxialer Filterkreis HS549/27 für den
Frequenzbereich 87...108 MHz

Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
