Automatik - Empfänger ESP

Automatik - Empfänger ESP; Rohde & Schwarz, PTE (ID = 2439907) Commercial Re Automatik - Empfänger ESP; Rohde & Schwarz, PTE (ID = 2439905) Commercial Re

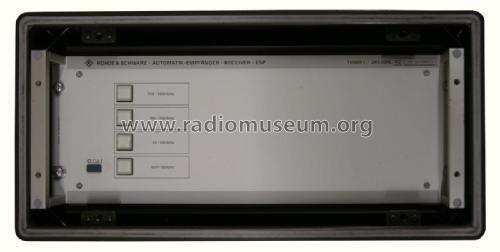

Automatik - Empfänger ESP; Rohde & Schwarz, PTE (ID = 2439906) Commercial Re
Use red slider bar for more.

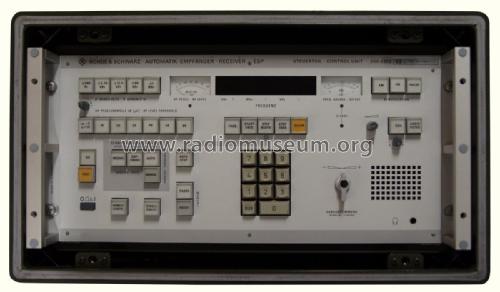

Automatik - Empfänger ESP; Rohde & Schwarz, PTE (ID = 2439907) Commercial Re
Rohde & Schwarz, PTE: Automatik - Empfänger ESP [Commercial Re] ID = 2439907 1200x870
Select picture or schematic to display from thumbnails on the right and click for download.
For model Automatik - Empfänger ESP, Rohde & Schwarz, PTE; München:
Werksbild aus Originalprospekt, bearbeitet

Country:  Germany
Manufacturer / Brand:  Rohde & Schwarz, PTE; München
alternative name

Messgerätebau Memmingen || Physikalisch-Technisches Entwicklungslabor Dr. Rohde & Dr. Schwarz
Year: 1979 ? Category: Commercial Receiver (may include amateur bands)
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superhet, double/triple conversion; ZF/IF 35000/5000 kHz
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 115; 125; 220; 235 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Automatik - Empfänger ESP - Rohde & Schwarz, PTE; München
Material Metal case
Shape Boatanchor (heavy military or commercial set >20 kg).
Dimensions (WHD) 492 x 250 x 514 mm / 19.4 x 9.8 x 20.2 inch
Notes

Automatik - Empfänger ESP: Dreifachsuper mit Scanfunktionen, ZF 265 / 565 / 865 MHz; 35 MHz; 5 MHz;
Betriebsarten: AM (A3), FM (F3), Impuls
Frequenzbereich: 10 kHz - 30 MHz; 30 - 100 MHz; 100 - 700 MHz; 700 - 1300 MHz; mit optionalem Tuner II bis 2500 MHz
Selektivität: ± 0.5 / ± 3.75 / ± 12.5 / ± 50 kHz / ± 1 MHz
Scanfunktionen, Steuerung durch Computersoftware.

Net weight (2.2 lb = 1 kg) 30.5 kg / 67 lb 2.9 oz (67.181 lb)
Mentioned in -- Original prospect or advert
Literature/Schematics (1) - - Manufacturers Literature

Model page created by Martin Bösch. See "Data change" for further contributors.
