VLF-HF-Empfänger / Receiver EK 070 564.4018

VLF-HF-Empfänger / Receiver EK 070 564.4018; Rohde & Schwarz, PTE (ID = 209092) Receiver-C
VLF-HF-Empfänger / Receiver EK 070 564.4018; Rohde & Schwarz, PTE (ID = 895205) Receiver-C VLF-HF-Empfänger / Receiver EK 070 564.4018; Rohde & Schwarz, PTE (ID = 208931) Receiver-C
VLF-HF-Empfänger / Receiver EK 070 564.4018; Rohde & Schwarz, PTE (ID = 1162739) Receiver-C VLF-HF-Empfänger / Receiver EK 070 564.4018; Rohde & Schwarz, PTE (ID = 1162740) Receiver-C
VLF-HF-Empfänger / Receiver EK 070 564.4018; Rohde & Schwarz, PTE (ID = 2212681) Receiver-C VLF-HF-Empfänger / Receiver EK 070 564.4018; Rohde & Schwarz, PTE (ID = 2212682) Receiver-C
VLF-HF-Empfänger / Receiver EK 070 564.4018; Rohde & Schwarz, PTE (ID = 2212683) Receiver-C
Use red slider bar for more.
VLF-HF-Empfänger / Receiver EK 070 564.4018; Rohde & Schwarz, PTE (ID = 895205) Receiver-C
Rohde & Schwarz, PTE: VLF-HF-Empfänger / Receiver EK 070 564.4018 [Receiver-C] ID = 895205 933x298
Select picture or schematic to display from thumbnails on the right and click for download.
For model VLF-HF-Empfänger / Receiver EK 070 564.4018, Rohde & Schwarz, PTE; München:

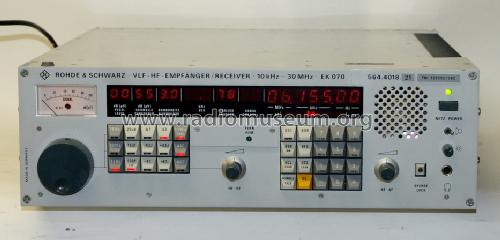

Aufnahme von der Ham Radio 2010

Country:  Germany
Manufacturer / Brand:  Rohde & Schwarz, PTE; München
alternative name

Messgerätebau Memmingen || Physikalisch-Technisches Entwicklungslabor Dr. Rohde & Dr. Schwarz
Year: 1979–1998 ? Category: Commercial Receiver (may include amateur bands)
Semiconductors (the count is only for transistors) Semiconductors present.
schematic requested

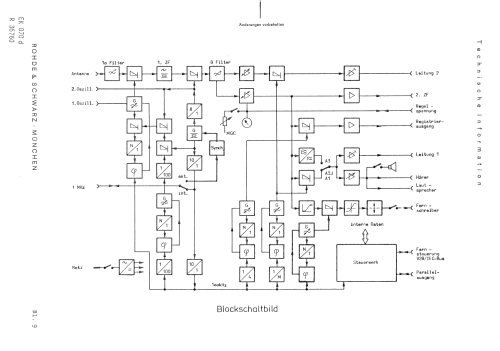

Main principle Superhet, double/triple conversion; ZF/IF 81400/1400 kHz
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 100/120/220/240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 1 W (unknown quality)
from Radiomuseum.org Model: VLF-HF-Empfänger / Receiver EK 070 564.4018 - Rohde & Schwarz, PTE; München
Material Metal case
Shape Rack
Dimensions (WHD) 484 x 149 x 507 mm / 19.1 x 5.9 x 20 inch
Notes Frequenzbereich 10 - 30000 kHz, Digitalanzeige mit Ablesegenauigkeit 10 Hz, direkte Frequenzeingabe (frühe Modelle rote LED-Anzeige, spätere Modelle mit LCD-Anzeige); 30 Speicher
coverage 10 - 30000 kHz, digital readout 10 Hz; AM, LSB/USB, CW; direct keypad frequency entry, 30 memories
Net weight (2.2 lb = 1 kg) 20 kg / 44 lb 0.8 oz (44.053 lb)
