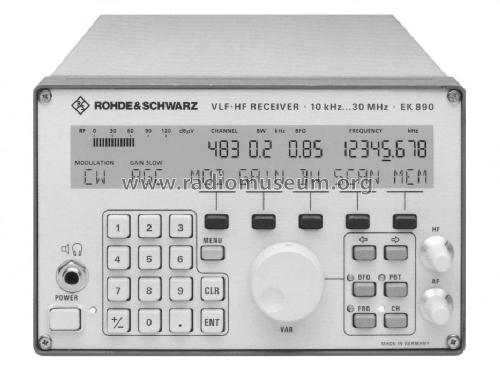

Rohde & Schwarz, PTE: EK 890 [Commercial Re] ID = 209069 933x688
Select picture or schematic to display from thumbnails on the right and click for download.
For model EK 890, Rohde & Schwarz, PTE; München

Country:  Germany
Manufacturer / Brand:  Rohde & Schwarz, PTE; München
alternative name

Messgerätebau Memmingen || Physikalisch-Technisches Entwicklungslabor Dr. Rohde & Dr. Schwarz
Year: 1991–1998 ? Category: Commercial Receiver (may include amateur bands)
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superhet, double/triple conversion
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 100/120/220/240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: EK 890 - Rohde & Schwarz, PTE; München
Material Metal case
Shape Rack
Dimensions (WHD) 211 x 132 x 460 mm / 8.3 x 5.2 x 18.1 inch
Notes Frequenzbereich 10 - 30000 kHz; Digitalanzeige mit 1 Hz Ablesegenauigkeit, direkte Frequenzeingabe, 1000 Speicher;
kann als Master-Empfänger bis 99 EK-890 fernsteuern, optional Preselektor FK890, optionaler Lautsprecher GA890L1, optionale Fernsteuereinheit GB899,
lieferbar mit und ohne Bedienelementen auf der Frontplatte und in voller und halber 19 Zoll-Einschubbreite.
coverage 10 - 30000 kHz; digital readout 1 Hz, direct keypad frequency entry, 1000 memories; AM,LSB/USB, CW;
master-slave operation as master or slave possible
optional preselector FK890, optional speaker GA890L1, optional remote control GB899
variant without front panel controls for computer control only
Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)
Source of data Shortwave Receivers - Past & Present (3rd ed.)

Model page created by Martin Bösch. See "Data change" for further contributors.
