Frequenzkontroller SMDF/SMDA (BN413115/2)

Frequenzkontroller SMDF/SMDA ; Rohde & Schwarz, PTE (ID = 153086) Equipment Frequenzkontroller SMDF/SMDA ; Rohde & Schwarz, PTE (ID = 153087) Equipment
Frequenzkontroller SMDF/SMDA ; Rohde & Schwarz, PTE (ID = 153088) Equipment Frequenzkontroller SMDF/SMDA ; Rohde & Schwarz, PTE (ID = 151237) Equipment
Frequenzkontroller SMDF/SMDA ; Rohde & Schwarz, PTE (ID = 151238) Equipment Frequenzkontroller SMDF/SMDA ; Rohde & Schwarz, PTE (ID = 814250) Equipment
Frequenzkontroller SMDF/SMDA ; Rohde & Schwarz, PTE (ID = 1302973) Equipment
Use red slider bar for more.
Frequenzkontroller SMDF/SMDA ; Rohde & Schwarz, PTE (ID = 153086) Equipment

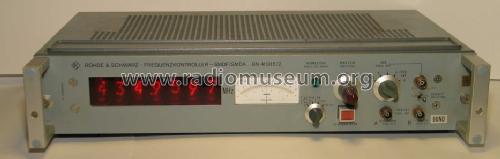

Rohde & Schwarz, PTE: Frequenzkontroller SMDF/SMDA [Equipment] ID = 153086 933x298
Select picture or schematic to display from thumbnails on the right and click for download.
For model Frequenzkontroller SMDF/SMDA (BN413115/2), Rohde & Schwarz, PTE; München

Country:  Germany
Manufacturer / Brand:  Rohde & Schwarz, PTE; München
alternative name

Messgerätebau Memmingen || Physikalisch-Technisches Entwicklungslabor Dr. Rohde & Dr. Schwarz
Year: 1970 ?? Category: Service- or Lab Equipment
Valves / Tubes 7: ZM1000
Semiconductors (the count is only for transistors) 84:
schematic requested
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Powered by external power supply or a main unit. / 115; 125; 220; 235 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Frequenzkontroller SMDF/SMDA - Rohde & Schwarz, PTE; München
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 484 x 91 x 338 mm / 19.1 x 3.6 x 13.3 inch
Notes Frequenzkontroller für die Messsender SMDF und SMDA.
Erhöht die Frequenzkonstanz des SMDA auf 2×10-7/h.
Zeitbasis 10 MHz, OCXO mit einer Genauigkeit von 5×10-8/Monat.
Anzeige der Frequenz über 7 Nixie-Röhren.
Drehspulinstrument für Frequenzhubmessung.
Positiver und negativer Frequenzhub getrennt messbar.
Der Originalpreis gilt für das Jahr 1972.
Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Price in first year of sale 11'900.00 DM
Source of data -- Original-techn. papers.

Model page created by Henning Wittrock. See "Data change" for further contributors.
