VHF-FM-Sender Transmitter SU155

VHF-FM-Sender Transmitter SU155; Rohde & Schwarz, PTE (ID = 335927) Commercial Tr VHF-FM-Sender Transmitter SU155; Rohde & Schwarz, PTE (ID = 335929) Commercial Tr
VHF-FM-Sender Transmitter SU155; Rohde & Schwarz, PTE (ID = 335928) Commercial Tr VHF-FM-Sender Transmitter SU155; Rohde & Schwarz, PTE (ID = 335930) Commercial Tr
Use red slider bar for more.

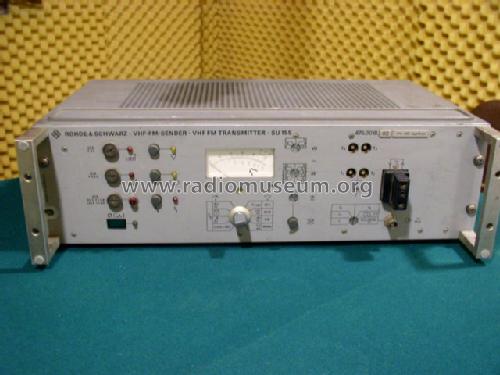

VHF-FM-Sender Transmitter SU155; Rohde & Schwarz, PTE (ID = 335927) Commercial Tr
Rohde & Schwarz, PTE: VHF-FM-Sender Transmitter SU155 [Commercial Tr] ID = 335927 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model VHF-FM-Sender Transmitter SU155, Rohde & Schwarz, PTE; München

Country:  Germany
Manufacturer / Brand:  Rohde & Schwarz, PTE; München
alternative name

Messgerätebau Memmingen || Physikalisch-Technisches Entwicklungslabor Dr. Rohde & Dr. Schwarz
Year: 1975 ?? Category: Commercial Transmitter (TX not Transceiver)
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out 50 W (unknown quality)
from Radiomuseum.org Model: VHF-FM-Sender Transmitter SU155 - Rohde & Schwarz, PTE; München
Material Metal case
Shape Rack
Dimensions (WHD) 470 x 135 x 280 mm / 18.5 x 5.3 x 11 inch
Notes VHF-FM (UKW) broadcast transmitter, 87.5···108 MHz. Power adjustable up to 50 W. PLL quartz based (xtal= fout/16) For rack mounting but also factory provided with a cage for stand alone use
Trasmettitore FM 87,5-108 stabilizzato a quarzo (freq. quarzo = freq. uscita/16) Potenza regolabile fino a 50 W max. Pensato per venir montato in mobile rack, dispone anche di un mobiletto proprio per uso senza rack.

Model page created by Enrico Bonisolo. See "Data change" for further contributors.
