Toleranzzeiger KZS BN5500

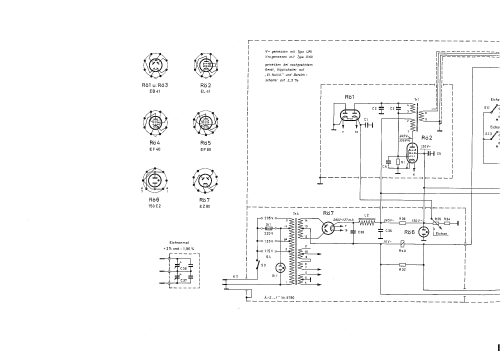

Toleranzzeiger KZS BN5500; Rohde & Schwarz, PTE (ID = 1404208) Equipment

Toleranzzeiger KZS BN5500; Rohde & Schwarz, PTE (ID = 1404209) Equipment
Toleranzzeiger KZS BN5500; Rohde & Schwarz, PTE (ID = 1404195) Equipment Toleranzzeiger KZS BN5500; Rohde & Schwarz, PTE (ID = 441104) Equipment
Toleranzzeiger KZS BN5500; Rohde & Schwarz, PTE (ID = 404057) Equipment Toleranzzeiger KZS BN5500; Rohde & Schwarz, PTE (ID = 1404197) Equipment
Toleranzzeiger KZS BN5500; Rohde & Schwarz, PTE (ID = 1404200) Equipment Toleranzzeiger KZS BN5500; Rohde & Schwarz, PTE (ID = 1404201) Equipment
Toleranzzeiger KZS BN5500; Rohde & Schwarz, PTE (ID = 1499655) Equipment Toleranzzeiger KZS BN5500; Rohde & Schwarz, PTE (ID = 1616377) Equipment
Toleranzzeiger KZS BN5500; Rohde & Schwarz, PTE (ID = 1616379) Equipment
Use red slider bar for more.
Toleranzzeiger KZS BN5500; Rohde & Schwarz, PTE (ID = 1404195) Equipment
Rohde & Schwarz, PTE: Toleranzzeiger KZS BN5500 [Equipment] ID = 1404195 900x675
Select picture or schematic to display from thumbnails on the right and click for download.
For model Toleranzzeiger KZS BN5500, Rohde & Schwarz, PTE; München:
Neuere Ausführung von 1967

Country:  Germany
Manufacturer / Brand:  Rohde & Schwarz, PTE; München
alternative name

Messgerätebau Memmingen || Physikalisch-Technisches Entwicklungslabor Dr. Rohde & Dr. Schwarz
Year: 1951 ? Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Toleranzzeiger KZS BN5500 - Rohde & Schwarz, PTE; München
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 300 x 220 x 220 mm / 11.8 x 8.7 x 8.7 inch
Notes Für Widerstände 10 Ohm bis 1,3 MOhm; Induktivitäten 100 µH bis 1 H; Kapazitäten 10 pF bis 1 µF; Anzeige durch Prozent-zeigendes Instrument; Messspannung: 1 V, Messfrequenz: 20 kHz.
Mentioned in Funkschau (Heft 13,1951)

Model page created by Karlheinz Fischer. See "Data change" for further contributors.
