• Country
• Germany

• Manufacturer / Brand
• Rosita, Theo Schmitz GmbH (Audion); Paderborn

• Year
• 1964/1965 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 77395

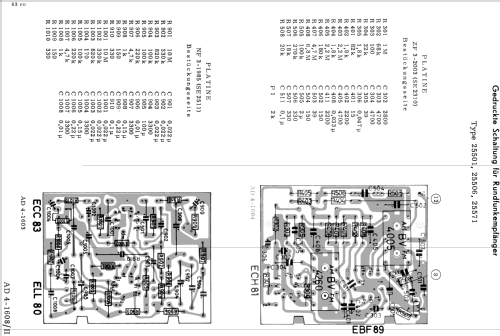

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EBF89 ECC83 EM84 ELL80 EZ80

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110, 135, 220, 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

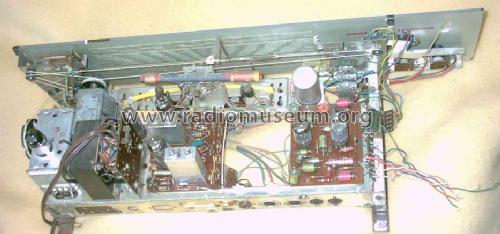

• Model: Spezialchassis 25501 Stereo - Rosita, Theo Schmitz GmbH

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 590 x 190 x 230 mm / 23.2 x 7.5 x 9.1 inch

• Notes

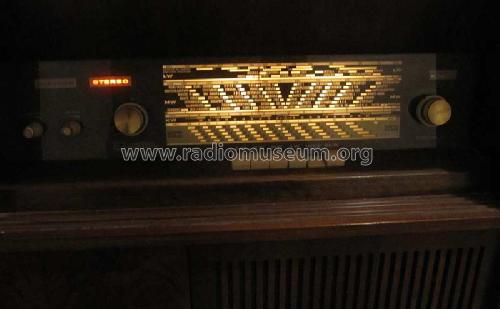

• Hersteller ist Körting. Wurde in einigen Rosita-Musikschränken verbaut.

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
