Micro Eight Transistor RE-815 (Japan 602)
Ross Electronics Corp.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Ross Electronics Corp.; Chicago (IL)
- Year
- 1965 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 191056
Japan code found on the back of the radio.
Back side of the radio.
- Number of Transistors
- 8
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 1 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 0.08 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Micro Eight Transistor RE-815 - Ross Electronics Corp.;
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 58 x 68 x 23 mm / 2.3 x 2.7 x 0.9 inch
- Notes
-

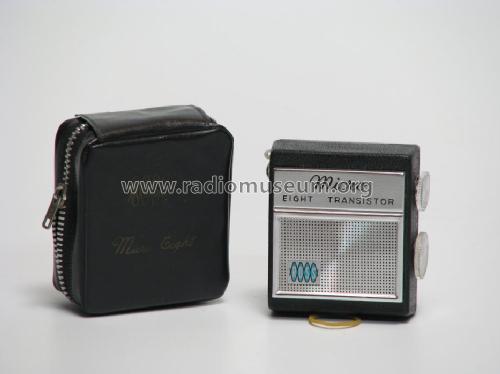

Ross Electronics model RE-815 radio with zip type leather case and earphone.
Gross weight including full packing 0.170 kg.Made in Japan 602 (Orion Electric Co.)
- Net weight (2.2 lb = 1 kg)
- 0.125 kg / 0 lb 4.4 oz (0.275 lb)
- Mentioned in
- Transistor Radios
- Author
- Model page created by Eckhard Wegner. See "Data change" for further contributors.
