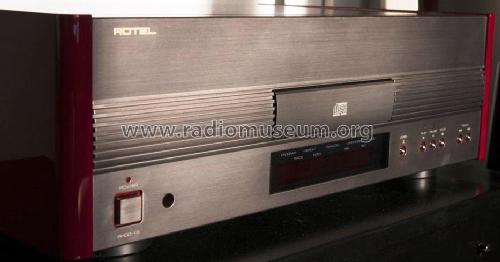

Compact Disc Player RHCD-10

Roland Electronics Co. Ltd., Rotel; Tokyo

Datos
Foro
Imágenes
Colecciones

  • Año
  • 1993 ?
  • Categoría
  • Registrador o reproductor de sonido o visual
  • Radiomuseum.org ID
  • 308420

 Especificaciones técnicas

  • Numero de transistores
  • Hay semiconductores.
  • Semiconductores
  • Principio principal
  • Amplificador de Audio
  • Gama de ondas
  • - no hay
  • Especialidades
  • CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)
  • Tensión de funcionamiento
  • Red: Corriente alterna (CA, Inglés = AC) / 100 or 120 or 230 or 240 Volt
  • Altavoz
  • - Este modelo usa amplificador externo de B.F.
  • Material
  • Metálico
  • de Radiomuseum.org
  • Modelo: Compact Disc Player RHCD-10 - Roland Electronics Co. Ltd.,
  • Forma
  • Unidad para estanteria.
  • Ancho, altura, profundidad
  • 470 x 151 x 344 mm / 18.5 x 5.9 x 13.5 inch
  • Anotaciones

  • A compact disc player in Rotel's 'Michi' High End Series of hi-fi separates. Twin power transformers provide separate power supplies for the digital and analog sections. With a precision 20 bit chip for the digital to analog conversion in each channel, an 8 x oversampling filter followed by a 3rd order Bessel analog filter. The analog output stage is made with discrete components rather than an IC chip. With analog RCA output sockets and Coax and BNC digital outputs. Convenience features include indexing, variable mute, absolute phase inversion, a dimmer for the display, programming, random play and two different selectable digital filter responses. With remote control RHR-10CD.

    Laser mechanism: ................Philips CDM-9 PRO
    Digital Filter: ........................8 X Oversampling
    Digital to Analog Converters:  20 Bit Precision DACs
    Frequency Response: ..........5 - 20,000Hz ± 0.5dB
    Dynamic Range: ..................> 100dB
    Separation: .........................> 120dB Full bandwith
    Signal to Noise Ratio: ..........> 115dB (A wtd.)
    Total Harmonic Distortion: ....< 0.003%

    Versions/Power Requirements
    100 V AC 50-60Hz
    120 V AC 50-60Hz
    230 V AC 50-60Hz
    240 V AC 50-60Hz

  • Peso neto
  • 10.7 kg / 23 lb 9.1 oz (23.568 lb)
  • Mencionado en
  • - - Manufacturers Literature (Rotel hifi High End Series catalogue)
  • Documentación / Esquemas (1)
  • - - Manufacturers Literature (Technical Manual for the RHCD 10)
  • Documentación / Esquemas (2)
  • - - Manufacturers Literature (Owner's Manual for the RHCD 10)
  • Autor
  • Modelo creado por Howard Craven. Ver en "Modificar Ficha" los participantes posteriores.
