AM/FM Stereo Tuner RMT-80

AM/FM Stereo Tuner RMT-80; Rotel, The, Co., Ltd (ID = 1682741) Radio

AM/FM Stereo Tuner RMT-80; Rotel, The, Co., Ltd (ID = 1682742) Radio

AM/FM Stereo Tuner RMT-80; Rotel, The, Co., Ltd (ID = 1682743) Radio

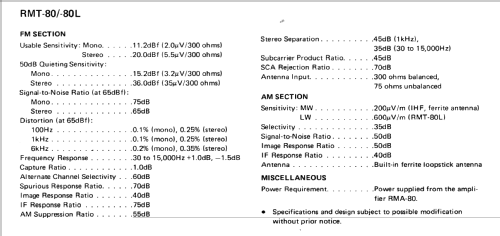

AM/FM Stereo Tuner RMT-80; Rotel, The, Co., Ltd (ID = 1682744) Radio
AM/FM Stereo Tuner RMT-80; Rotel, The, Co., Ltd (ID = 784289) Radio AM/FM Stereo Tuner RMT-80; Rotel, The, Co., Ltd (ID = 784282) Radio
AM/FM Stereo Tuner RMT-80; Rotel, The, Co., Ltd (ID = 784285) Radio AM/FM Stereo Tuner RMT-80; Rotel, The, Co., Ltd (ID = 784283) Radio
AM/FM Stereo Tuner RMT-80; Rotel, The, Co., Ltd (ID = 784284) Radio AM/FM Stereo Tuner RMT-80; Rotel, The, Co., Ltd (ID = 784286) Radio
AM/FM Stereo Tuner RMT-80; Rotel, The, Co., Ltd (ID = 784287) Radio AM/FM Stereo Tuner RMT-80; Rotel, The, Co., Ltd (ID = 784288) Radio
Use red slider bar for more.
AM/FM Stereo Tuner RMT-80; Rotel, The, Co., Ltd (ID = 784289) Radio
Rotel, The, Co., Ltd: AM/FM Stereo Tuner RMT-80 [Radio] ID = 784289 933x440
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM/FM Stereo Tuner RMT-80, Rotel, The, Co., Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Rotel, The, Co., Ltd.; Tokyo
Year: 1980 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 15:
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Powered by external power supply or a main unit. / AC 14 V + DC 33 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: AM/FM Stereo Tuner RMT-80 - Rotel, The, Co., Ltd.; Tokyo
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 279 x 64 x 206 mm / 11 x 2.5 x 8.1 inch
Notes

An AM/FM Stereo Tuner, a component in the Rotel Micro Component 80 System along with the RMA-80 Stereo Integrated Amplifier and the RMD-80 Stereo Cassette Deck.

Frequency ranges: FM 88 - 108 MHz, MW 550 - 1600 kHz. Rotary Tuning control. Switches for Standby, FM, AM and Muting Mode/Off/Mono. Three LED Tuning indicators (when a radio station is correctly tuned just the centre LED is lit). FM Stereo Indicator. Pivoting ferrite antenna on the back of the housing. 75 and 300 ohms screw terminals for FM antenna.

3 ICs: HA1137W (FM-IF, -NF-V, AFC), AN363N (Stereo Decoder), MC1458P (Dual Series 158, +/- 18 Volt).

The power supply (AC 14V / DC 33V) is from a power outlet on the rear of the RMA-80 amplifier.

The similar Rotel RMT-80L MW/LW/FM Stereo Tuner additionally has LW.

AM/FM-Stereo Tuner. Frequenzbereiche: UKW 88...108 MHz, MW 550...1600 kHz.
Ratio-Mitten-Abstimmung mittels 3 LED. Muting schaltbar. Schwenkbare Ferritantenne an der Gehäuserückseite. Antenneneingang über Schraubanschlüsse (75/300 Ohm).< /> 3 ICs: HA1137W (FM-ZF,-NF-V, AFC), AN363N (Stereo-Decoder), MC1458P (Dual-Serie 158, +/- 18 Volt). Die Spannungsversorgung (AC 14V / DC 33V) erfolgt über den Verstärker (RMA-80).



Net weight (2.2 lb = 1 kg) 2.2 kg / 4 lb 13.5 oz (4.846 lb)
Literature/Schematics (1) - - Manufacturers Literature (Owner's Manual for the RMT-80 and RMT-80L)
Literature/Schematics (2) - - Manufacturers Literature (Technical Manual for the RMD-80, RMA-80 and RMT-80/-80L)

Model page created by Peter Roggenhofer † 25.4.18. See "Data change" for further contributors.
