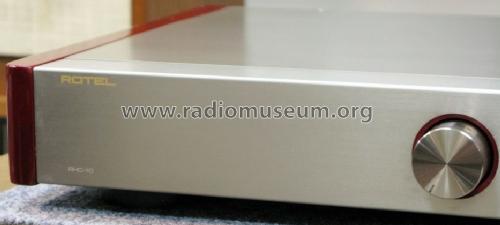

Stereo Passive Controller RHC-10
Roland Electronics Co. Ltd., Rotel; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Roland Electronics Co. Ltd., Rotel; Tokyo
- Year
- 1993 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 308445
- Wave bands
- - without
- Details
- Hi-Fi equipment
- Power type and voltage
- No Power needed
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Stereo Passive Controller RHC-10 - Roland Electronics Co. Ltd.,
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 470 x 76 x 332 mm / 18.5 x 3 x 13.1 inch
- Notes
-
A stereo passive preamplifier in Rotel's 'Michi' High-End Series of Hi-Fi separates. This device is designed to select input sources and adjust the output level to a power amplifier, no equalization or amplification is performed. With five sets of high level input sockets which can accomodate components such as CD players, DATs, tape decks and tuners. A phono equalizer is required for connection to a turntable, ideally the matching Rotel RHQ-10 Stereo Phono Equalizer, or similar. Two sets of sockets provide output to a Tape Deck (Record Out) and to a power amplifier (Main Out), the matching Rotel RHB-10 Power Amplifier or another power amplifier.
With rotary switches for Rec. Out Selector (1 to 4, Off) and Input Selector (1 to 5) and an Attenuator rotary control, the front section controls the right channel output volume to the power amplifier, the rear section the left channel output volume.
Input (1-5) Impedance ....................: 10kΩ
Main Out Impedance ......................: Source Impedance
Crosstalk (20Hz-20kHz) ..................: 80dB
Channel Separation (20Hz-20kHz) .: 75dB
Inputs .............................................: 5 unbalanced
Outputs (Rec. Out and Main Out) ..: 2 unbalanced
- Net weight (2.2 lb = 1 kg)
- 5 kg / 11 lb 0.2 oz (11.013 lb)
- Price in first year of sale
- 1,000.00 USD
- Mentioned in
- - - Manufacturers Literature (Rotel hifi High End Series catalogue)
- Literature/Schematics (1)
- - - Manufacturers Literature (Owner's Manual for the RHC10 Stereo Passive Controller)
- Literature/Schematics (2)
- - - Manufacturers Literature (Technical Manual for the RHC10 Stereo Passive Controller)
- Author
- Model page created by Howard Craven. See "Data change" for further contributors.
