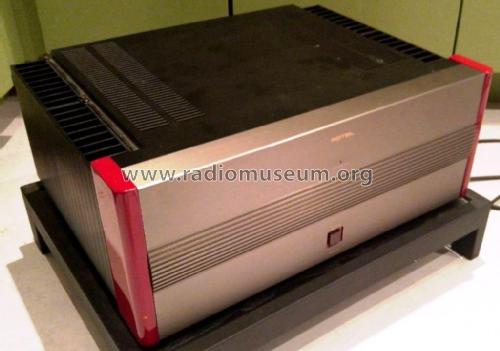

Stereo Power Amplifier RHB-10

Roland Electronics Co. Ltd., Rotel; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1993 ?
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 308447

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 100 or 120 or 220 or 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 400 W (660 W max.)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo Power Amplifier RHB-10 - Roland Electronics Co. Ltd.,
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 470 x 195 x 375 mm / 18.5 x 7.7 x 14.8 inch
  • Notes

  • A 2 x 200 watt Hi-Fi stereo power amplifier in Rotel's 'Michi' High-End Series of Hi-Fi separates. Dual Mono design. Built-in Protection circuitry with a Protection Indicator which illuminates and sound output is stopped when the internal temperature rises to an abnormal level. Internal cooling fan.  Press button for Power which is illuminated when power is on. Input sockets for connection to the Rotel RHC-10 Stereo Passive Controller, the Rotel RHA-10 Stereo Active Controller or another suitable preamplifier. Connections for one pair of loudspeakers.

    Continuous Power Output :
    200 watts per channel, min. RMS both channels driven into 8Ω or
    330 watts per channel, min. RMS both channels driven into 4Ω
    from 20Hz to 20kHz with ≤ 0.03% Total Harmonic Distortion
    Total Harmonic Distortion ......:  ≤ 0.03%
    Intermodulation Output ........ :  ≤ 0.03%
    Damping Factor .................. :  550 (20Hz - 20kHz 8Ω)
    Speaker load impedance  .....:  4 - 8Ω
    Input Sensitivity/Impedance ..:  0.775V/30kΩ
    Frequency Response ...........:  10Hz - 130kHz, +0dB, -1dB
    Signal to Noise Ratio ...........:  130dB (IHF, A Network)
    Crosstalk (20Hz - 20kHz) .....:  100dB
    Peak Current ......................:  150 A (0.1Ω, 10µsec, 1 Puls)
    Power Consumption ............:  550 watts

    Versions/Power Requirements
    100 V AC 50-60Hz
    120 V AC 50-60Hz
    220 V AC 50-60Hz
    240 V AC 50-60Hz



  • Net weight (2.2 lb = 1 kg)
  • 28.5 kg / 62 lb 12.4 oz (62.775 lb)
  • Price in first year of sale
  • 2,700.00 USD
  • Mentioned in
  • - - Manufacturers Literature (Rotel hifi High End Series catalogue)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Owner's Manual for the Rotel Stereo Power Amplifier RHB10)
  • Literature/Schematics (2)
  • - - Manufacturers Literature (Technical Manual for the Rotel Stereo Power Amplifier RHB10)
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
