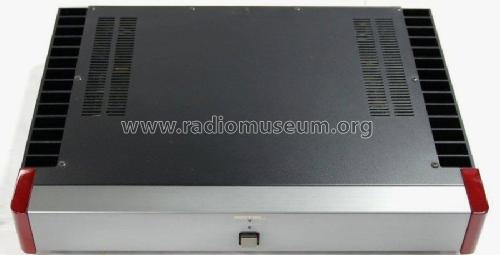

Stereo Power Amplifier RHB-05

Rotel, The, Co., Ltd.; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1993 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 308469

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 100 or 120 or 220 or 230 or 240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Power out
  • 200 W (320 W max.)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo Power Amplifier RHB-05 - Rotel, The, Co., Ltd.; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 470 x 80 x 365 mm / 18.5 x 3.1 x 14.4 inch
  • Notes

  • A 2 x 100 watt Hi-Fi stereo power amplifier in Rotel's 'Michi' High-End Series of Hi-Fi separates. Dual Mono design. Built-in Protection circuitry with a Protection Indicator which illuminates and sound output is stopped when the internal temperature rises to an abnormal level. Press button for Power and red power on LED indicator. Input sockets for connection to the Rotel RHC-10 Stereo Passive Controller, the Rotel RHA-10 Stereo Active Controller or another suitable preamplifier. Connections for one pair of loudspeakers.

    Continuous Power Output :
    100 watts per channel, min. RMS both channels driven into 8Ω or
    160 watts per channel, min. RMS both channels driven into 4Ω
    from 20Hz to 20kHz with ≤ 0.03% Total Harmonic Distortion
    Total Harmonic Distortion ......:  ≤ 0.03%
    Intermodulation Distortion..... :  ≤ 0.03%
    Damping Factor .................. :  550 (20Hz - 20kHz at 8Ω)
    Speaker load impedance  .....:  4 - 8Ω
    Input Sensitivity/Impedance ..:  0.775V/30kΩ
    Frequency Response ...........:  10Hz - 130kHz, +0dB, -1dB
    Signal to Noise Ratio ...........:  120dB (IHF, A)
    Power Consumption ............:  400 watts

    Versions/Power Requirements
    100 V AC 50-60Hz
    120 V AC 50-60Hz
    220 V AC 50-60Hz
    230 V AC 50-60Hz
    240 V AC 50-60Hz

  • Net weight (2.2 lb = 1 kg)
  • 13.5 kg / 29 lb 11.8 oz (29.736 lb)
  • Mentioned in
  • - - Manufacturers Literature (Rotel hifi High End Series catalogue)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Technical Manual for the Rotel Stereo Power Amplifier RHB05)
  • Literature/Schematics (2)
  • - - Manufacturers Literature (Owner's Manual for the Rotel Power Amplifier RHB05)
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
