- Country
- Belgium
- Manufacturer / Brand
- RR Radio (R.R. Radio); Bruxelles, Anderlecht
- Year
- 1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 120835
Ansicht von vorne

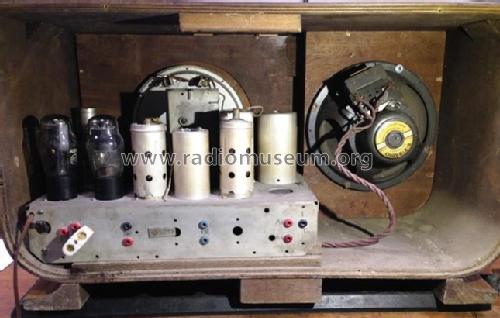

Ansicht Rückseite offen
Skala Detail
Chassis von hinten
Chassis von oben
Typenschild Lautsprecher
Ansicht von hinten mit Rückwand
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 457 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Details
- Visual Tuning Indicator pre Eye
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 17 cm = 6.7 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: 555 - RR Radio R.R. Radio; Bruxelles
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 600 x 350 x 300 mm / 23.6 x 13.8 x 11.8 inch
- Notes
-
Abstimmanzeige mit kl. Zeigerinstrument (Milliamperemeter) hinter der Skala.
Indicateur de syntonisation (mA mètre) derrière une fenêtre dans le cadran.
- Net weight (2.2 lb = 1 kg)
- 15 kg / 33 lb 0.6 oz (33.04 lb)
- Price in first year of sale
- 1,175.00 bef
- Source of data
- Manuel de la Radio 1940, van Cortenberghe
- Author
- Model page created by Georges Van Campenhout † 28.4.22. See "Data change" for further contributors.
