212WL
SABA; Villingen
- Country
- Germany
- Manufacturer / Brand
- SABA; Villingen
- Year
- 1933–1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 6659
-
- Brand: Schwer & Söhne, GmbH
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- TRF with regeneration; 1 Special; 1 AF stage(s)
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 220; 240 or 110; 125; 145-160; 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 1 W (unknown quality)
- Material
- Bakelite case
- from Radiomuseum.org

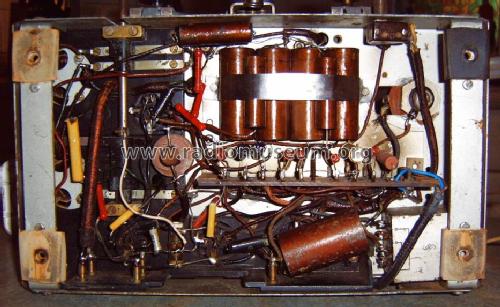

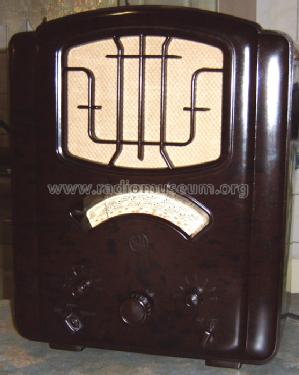

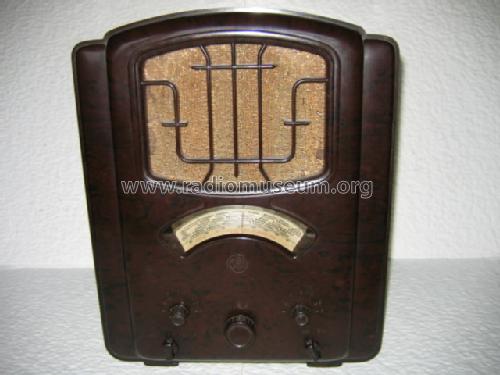

- Model: 212WL - SABA; Villingen
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 340 x 460 x 220 mm / 13.4 x 18.1 x 8.7 inch
- Notes
-
Bandfilter-Eingang.
Saba Lautsprecher DW 20.Das Schema zeigt die Spannungsbereiche 110; 125; 220; 240 V. Es existieren jedoch auch Geräte mit den Bereichen 110; 125; 145-160; 220 Volt.
- Net weight (2.2 lb = 1 kg)
- 9 kg / 19 lb 13.2 oz (19.824 lb)
- Price in first year of sale
- 169.00 RM
- Source of data
- -- Original prospect or advert / Radiokatalog Band 1, Ernst Erb

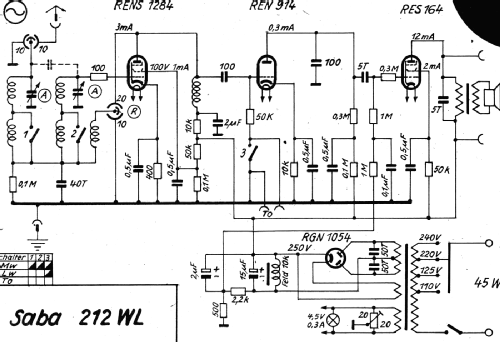

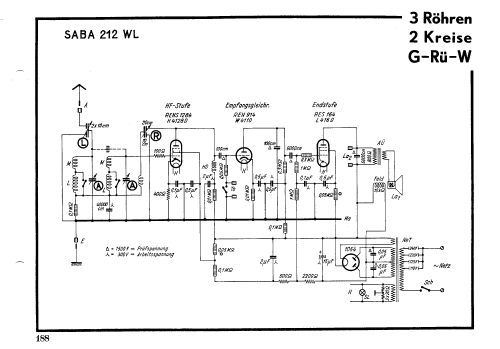

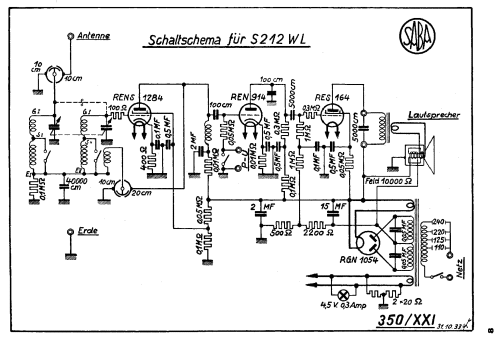

- Circuit diagram reference
- Lange+Schenk+FS-Röhrenbestückung
- Mentioned in
- Radio-Katalog Fricke, Radio Groß-Vertrieb, 1934/35
- Picture reference
- Das Modell ist im «Radiokatalog» (Erb) abgebildet.
- Other Models
-
Here you find 1644 models, 1498 with images and 1178 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from SABA; Villingen
Collections
The model is part of the collections of the following members.
Forum contributions about this model: SABA; Villingen: 212WL
Threads: 3 | Posts: 5
