244GWL; SABA; Villingen (ID = 2690) Radio

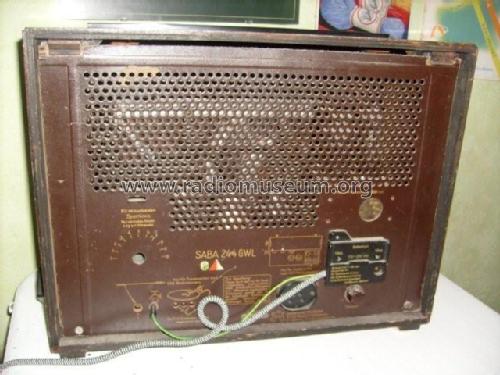

SABA; Villingen: 244GWL [Radio] ID = 2690 770x577
Select picture or schematic to display from thumbnails on the right and click for download.
For model 244GWL, SABA; Villingen

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: CF7 CF7 CL4 CY1 U820-6
Main principle TRF with regeneration; 1 Special; 1 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 244GWL - SABA; Villingen
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 485 x 370 x 285 mm / 19.1 x 14.6 x 11.2 inch
Notes Wellenschleuse
Net weight (2.2 lb = 1 kg) 17.5 kg / 38 lb 8.7 oz (38.546 lb)
Price in first year of sale 232.00 RM
Source of data Handbuch WDRG 1937 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung

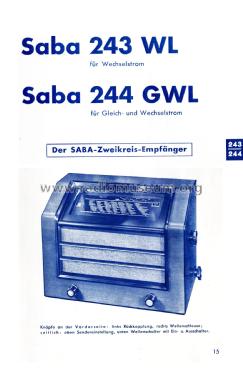

Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
