347GWL

347GWL; SABA; Villingen (ID = 5499) Radio

347GWL; SABA; Villingen (ID = 8583) Radio

347GWL; SABA; Villingen (ID = 11120) Radio
347GWL; SABA; Villingen (ID = 721723) Radio 347GWL; SABA; Villingen (ID = 721724) Radio
347GWL; SABA; Villingen (ID = 721725) Radio 347GWL; SABA; Villingen (ID = 81024) Radio
347GWL; SABA; Villingen (ID = 493548) Radio 347GWL; SABA; Villingen (ID = 708440) Radio
347GWL; SABA; Villingen (ID = 1853909) Radio
Use red slider bar for more.
347GWL; SABA; Villingen (ID = 721723) Radio
SABA; Villingen: 347GWL [Radio] ID = 721723 900x728
Select picture or schematic to display from thumbnails on the right and click for download.
For model 347GWL, SABA; Villingen

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: CK1 CF7 CB2 CL4 CY1 U920
Main principle Superheterodyne (common); ZF/IF 485 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 347GWL - SABA; Villingen
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 510 x 365 x 320 mm / 20.1 x 14.4 x 12.6 inch
Notes var.BBr.
Net weight (2.2 lb = 1 kg) 17.5 kg / 38 lb 8.7 oz (38.546 lb)
Price in first year of sale 271.00 RM
Source of data Handbuch WDRG 1937 / Radiokatalog Band 1, Ernst Erb

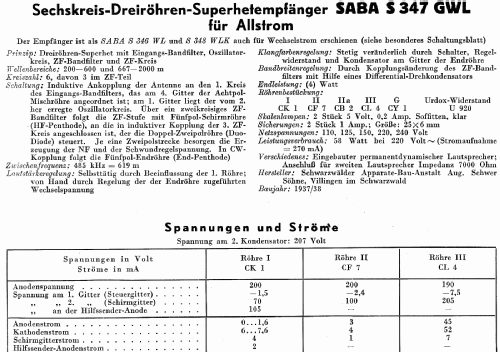

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in Technisch- Commercieel - Radio Vademecum Staleman
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from SABA; Villingen
Here you find 1615 models, 1458 with images and 1115 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
