• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 6609

• • Brand: Schwer & Söhne, GmbH

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH11 UBF11 UCL11 UY11 U1010P

• Main principle
• Superheterodyne (common); ZF/IF 487 kHz

• Tuned circuits
• 8 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

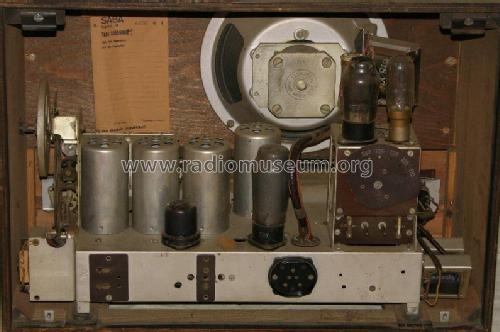

• Model: S-358GWK 358GWK [Holzgehäuse] - SABA; Villingen

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 530 x 386 x 295 mm / 20.9 x 15.2 x 11.6 inch

• Notes

• Variable Bandbreite.

  Eine Liste der verwendeten Kondensatoren (Aufdruck und tatsächliche Werte) findet sich hier: Codierung Saba-Kondensatoren 1938/39

• Net weight (2.2 lb = 1 kg)
• 15.1 kg / 33 lb 4.2 oz (33.26 lb)

• Source of data
• Handbuch WDRG 1939 / Radiokatalog Band 1, Ernst Erb

• Mentioned in
• -- Schematic (OTO-Schaltungen)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Other Models

• Here you find 1643 models, 1492 with images and 1176 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
