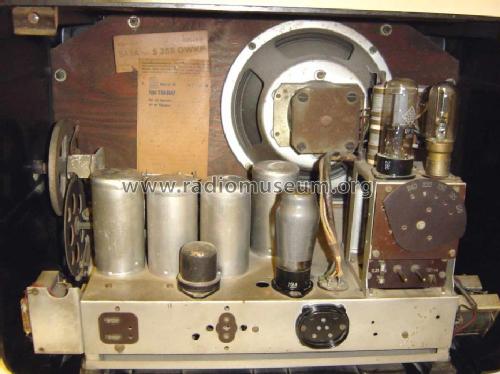

S-358GWK 358GWK; SABA; Villingen (ID = 209488) Radio S-358GWK 358GWK; SABA; Villingen (ID = 209489) Radio
S-358GWK 358GWK; SABA; Villingen (ID = 22881) Radio S-358GWK 358GWK; SABA; Villingen (ID = 708448) Radio
S-358GWK 358GWK; SABA; Villingen (ID = 22879) Radio S-358GWK 358GWK; SABA; Villingen (ID = 22880) Radio
S-358GWK 358GWK; SABA; Villingen (ID = 152263) Radio S-358GWK 358GWK; SABA; Villingen (ID = 152264) Radio
S-358GWK 358GWK; SABA; Villingen (ID = 152265) Radio S-358GWK 358GWK; SABA; Villingen (ID = 152266) Radio
Use red slider bar for more.
S-358GWK 358GWK; SABA; Villingen (ID = 209488) Radio
SABA; Villingen: S-358GWK 358GWK [Radio] ID = 209488 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model S-358GWK 358GWK Pressstoffgehäuse, SABA; Villingen

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH11 UBF11 UCL11 UY11 U1010P
Main principle Superheterodyne (common); ZF/IF 487 kHz
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: S-358GWK 358GWK [Pressstoffgehäuse] - SABA; Villingen
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 530 x 373 x 286 mm / 20.9 x 14.7 x 11.3 inch
Notes

Variable Bandbreite.

Eine Liste der verwendeten Kondensatoren (Aufdruck und tatsächliche Werte) findet sich hier: Codierung Saba-Kondensatoren 1938/39

Net weight (2.2 lb = 1 kg) 15.1 kg / 33 lb 4.2 oz (33.26 lb)
Price in first year of sale 234.00 RM
Source of data Handbuch WDRG 1939 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Literature/Schematics (1) -- Original-techn. papers.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
