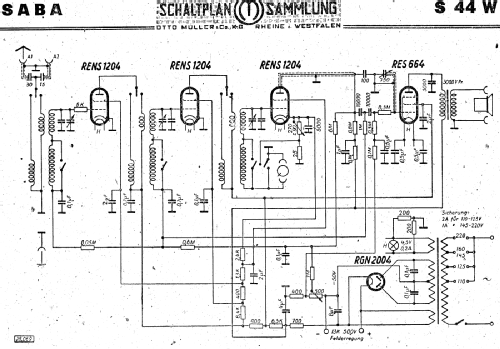

Select picture or schematic to display from thumbnails on the right and click for download.
For model 44 (44W), SABA; Villingen

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1931/1932 Category: Broadcast Receiver - or past WW2 Tuner

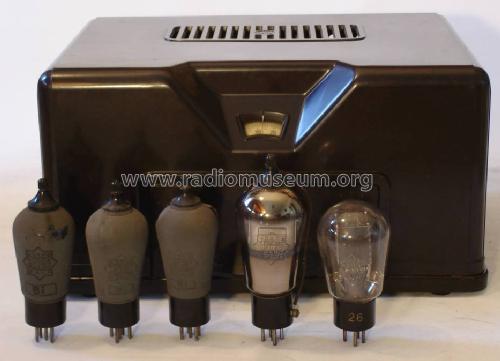

Valves / Tubes 5: RENS1204 RENS1204 RENS1204 RES664d RGN2004
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown); 2 Special; 1 AF stage(s); Anode bend detection
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: 44 - SABA; Villingen
Material Bakelite case
Dimensions (WHD) 410 x 210 x 310 mm / 16.1 x 8.3 x 12.2 inch
Notes [501]
Price in first year of sale 240.00 RM +
Collectors' prices
Source of data Katalog Radio-Zentrale Prohaska 1931/32 / Radiokatalog Band 1, Ernst Erb
Mentioned in Saba-Diplomarbeit
