S-680WLK 680WLK; SABA; Villingen (ID = 2896) Radio

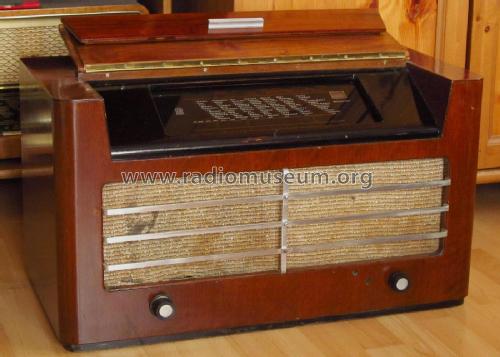

SABA; Villingen: S-680WLK 680WLK [Radio] ID = 2896 933x582
Select picture or schematic to display from thumbnails on the right and click for download.
For model S-680WLK 680WLK, SABA; Villingen

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1937–1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: AF3 AK2 AF3 AF7 AB2 AF7 AL5 RGN2004
Main principle Superhet with RF-stage; ZF/IF 485 kHz
Tuned circuits 9 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: S-680WLK 680WLK - SABA; Villingen
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 700 x 390 x 360 mm / 27.6 x 15.4 x 14.2 inch
Notes variable Bandbreiteneinstellung/Tonblende.
Net weight (2.2 lb = 1 kg) 29 kg / 63 lb 14 oz (63.877 lb)
Price in first year of sale 455.00 RM
Source of data Handbuch WDRG 1937 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in Technisch- Commercieel - Radio Vademecum Staleman

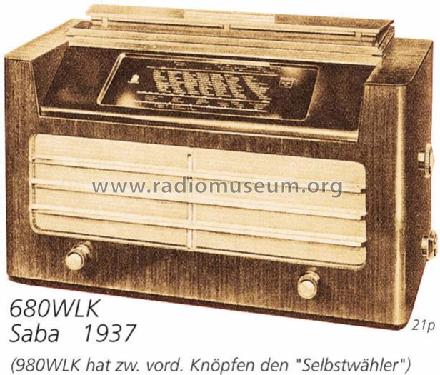

Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
