SABA; Villingen: Club P4 [Radio] ID = 39824 720x578
Select picture or schematic to display from thumbnails on the right and click for download.
For model Club P4 (P 4 P4GW P4GWK), SABA; Villingen

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1948/1949 Category: Broadcast Receiver - or past WW2 Tuner

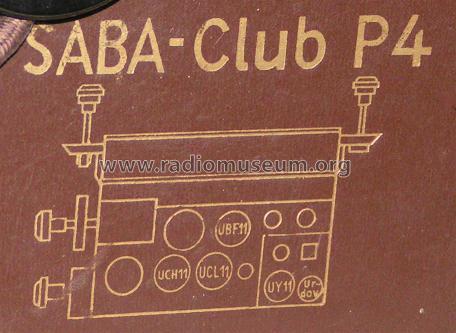

Valves / Tubes 4: UCH11 UBF11 UCL11 UY11 U2410P
Main principle Super-Heterodyne (Super in general); ZF/IF 487 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Club P4 - SABA; Villingen

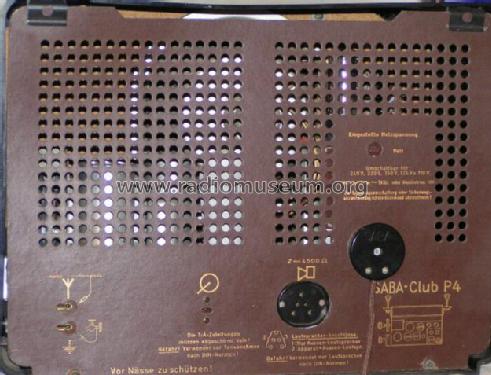

Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 480 x 354 x 250 mm / 18.9 x 13.9 x 9.8 inch
Notes wie 356GW v.1939 [572], var.BBr.
Net weight (2.2 lb = 1 kg) 11.5 kg / 25 lb 5.3 oz (25.33 lb)
Price in first year of sale 495.00 DM
Collectors' prices
Source of data Rufag GmbH 1949 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange-Nowisch

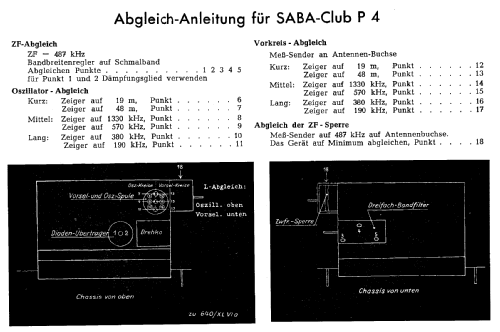

Literature/Schematics (1) -- Original-techn. papers.


All listed radios etc. from SABA; Villingen
Here you find 1546 models, 1402 with images and 1035 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
SABA; Villingen: Club P4
Threads: 1 | Posts: 1
Hits: 2024     Replies: 0
saba: P4GWK; Club P4GW
Eckhard Kull
15.May.05
  1 Bedienungsanleitung SABA-CLUB P 4
