Cassettenrecorder CR-325H

• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1975/1976

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 93141

• • Brand: Schwer & Söhne, GmbH

• Picture

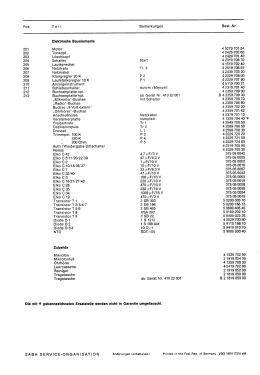

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / 6×1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10.5 cm = 4.1 inch

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Cassettenrecorder CR-325H - SABA; Villingen

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 240 x 75 x 260 mm / 9.4 x 3 x 10.2 inch

• Notes
• Saba Cassettenrecorder CR325H. Übertragungsbereich (nach DIN 45511): 60···12000 Hz; Aussteuerung automatisch oder manuell. Ausführung:Nußbaumdekor; Verkauf über die Weltfunk anlässlich der Funkausstellung 1975

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• Price in first year of sale
• 248.00 DM

• Source of data
• Handbuch VDRG 1975/1976

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
