Donau E Mod. DO-E

SABA; Villingen

  • Year
  • 1968/1969
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 27336
    • Brand: Schwer & Söhne, GmbH

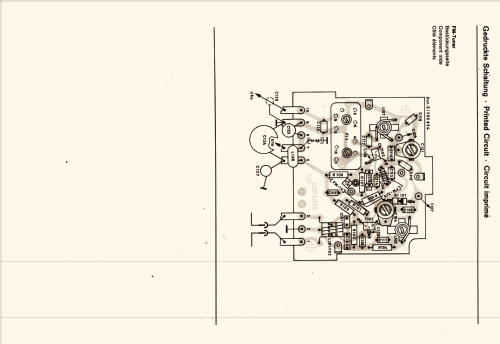

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 9
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 7 AM circuit(s)     9 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 2 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Donau E Mod. DO-E - SABA; Villingen
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 455 x 180 x 145 mm / 17.9 x 7.1 x 5.7 inch
  • Notes
  • Fest eingebaute Ferritantenne für M, L, K und Netzantenne.
    KW: 49m-Europaband

    Eisenlose Gegentaktendstufe mit 2 W (Musik); Lautsprecher 10×15 cm; Anschluss für Plattenspieler und Tonbandgerät. Anschluss für Aussenlautsprecher nachrüstbar.

    Ausführungen:
    Nussbaumfarben hell und mitteldunkel, mattweiss, anthrazit/weiss oder rubinrot/weiss.

    Der Zusatz "E" findet sich nur am Gerät und in den Service-Unterlagen. Prospekte und Grosshandelskataloge führen nur Donau.

    Die Saba-Herstellerprospekte und das Handbuch VDRG 1968/69 nennen für Donau E eine Ausgangsleistung von 4 Watt, das ist mit den Endstufentransistoren AC187/AC188 von der Belastbarkeit nicht möglich. Im Handbuch RFP 1968/69 ist dagegen 2W angegeben.

    Nachfolger im flacheren und längeren Gehäuse bei identischer Technik war Donau F.

  • Net weight (2.2 lb = 1 kg)
  • 3.4 kg / 7 lb 7.8 oz (7.489 lb)
  • Price in first year of sale
  • 198.00 DM
  • External source of data
  • erb
  • Mentioned in
  • Handbuch Rundfunk Fernsehen Phono (RFP) 1968/69 S.140
  • Literature/Schematics (1)
  • -- Original-techn. papers.
