• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1964/1965

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 110121

• • Brand: Schwer & Söhne, GmbH

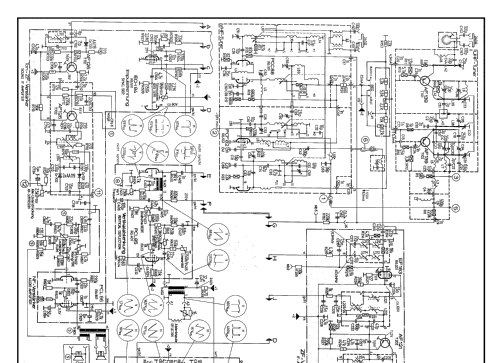

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 12

• Valves / Tubes
• PCC88 PCF82 EF183 PCL84 ECH84 ECH84 PCL85 PCL86 PL500 PY88 DY86 AW59-91

• Number of Transistors
• 6

• Semiconductors
• AF118 AF121 AF126 AF126 AF139 AF139 E20C3 BY250 OA160 OA160 OA161 OA161 OA161 AA119 AA119 AA119

• Main principle
• Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Radio Control (+Remote Wire etc)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Fürstenberg S154 Automatic - SABA; Villingen

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 634 x 940 x 384 mm / 25 x 37 x 15.1 inch

• Notes

• Saba, Fürstenberg S154 Automatic

  • 59 cm s/w Fernsehgerät
  • UHF Transistor Tuner.
  • Empfangsbereiche
    • VHF-Bereich: Kanäle 2 - 12
    • UHF-Bereich: Kanäle 21 - 68
  • Lautsprecher: 1 Stück 22 x 15 cm. und 1 Stück 15 x 8 cm.
  • Antenneneingang 240 Ohm symmetrisch.

  Die kabelgebundene Fernbedienung Typ FS15 enthält die Bedienelemente zum Einstellen der Lautstärke und des Helligkeit.

• Net weight (2.2 lb = 1 kg)
• 43.3 kg / 95 lb 6 oz (95.374 lb)

• Price in first year of sale
• 1,667.00 DM

• Source of data
• Handbuch VDRG 1964/1965

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
