HiFi-Studio 8050 Stereo H Mod. St 8050 H

HiFi-Studio 8050 Stereo H Mod. St 8050 H; SABA; Villingen (ID = 821468) Radio

HiFi-Studio 8050 Stereo H Mod. St 8050 H; SABA; Villingen (ID = 821470) Radio

HiFi-Studio 8050 Stereo H Mod. St 8050 H; SABA; Villingen (ID = 821471) Radio

HiFi-Studio 8050 Stereo H Mod. St 8050 H; SABA; Villingen (ID = 821472) Radio

HiFi-Studio 8050 Stereo H Mod. St 8050 H; SABA; Villingen (ID = 821473) Radio

HiFi-Studio 8050 Stereo H Mod. St 8050 H; SABA; Villingen (ID = 821474) Radio

HiFi-Studio 8050 Stereo H Mod. St 8050 H; SABA; Villingen (ID = 821475) Radio

HiFi-Studio 8050 Stereo H Mod. St 8050 H; SABA; Villingen (ID = 821476) Radio

HiFi-Studio 8050 Stereo H Mod. St 8050 H; SABA; Villingen (ID = 821477) Radio

HiFi-Studio 8050 Stereo H Mod. St 8050 H; SABA; Villingen (ID = 821478) Radio
HiFi-Studio 8050 Stereo H Mod. St 8050 H; SABA; Villingen (ID = 738725) Radio HiFi-Studio 8050 Stereo H Mod. St 8050 H; SABA; Villingen (ID = 738719) Radio
HiFi-Studio 8050 Stereo H Mod. St 8050 H; SABA; Villingen (ID = 716527) Radio HiFi-Studio 8050 Stereo H Mod. St 8050 H; SABA; Villingen (ID = 716524) Radio
HiFi-Studio 8050 Stereo H Mod. St 8050 H; SABA; Villingen (ID = 431162) Radio HiFi-Studio 8050 Stereo H Mod. St 8050 H; SABA; Villingen (ID = 716525) Radio
HiFi-Studio 8050 Stereo H Mod. St 8050 H; SABA; Villingen (ID = 716526) Radio HiFi-Studio 8050 Stereo H Mod. St 8050 H; SABA; Villingen (ID = 738718) Radio
HiFi-Studio 8050 Stereo H Mod. St 8050 H; SABA; Villingen (ID = 738720) Radio HiFi-Studio 8050 Stereo H Mod. St 8050 H; SABA; Villingen (ID = 738721) Radio
Use red slider bar for more.
HiFi-Studio 8050 Stereo H Mod. St 8050 H; SABA; Villingen (ID = 738725) Radio

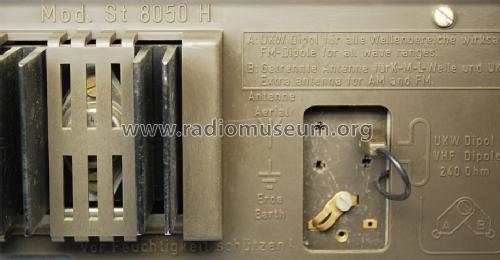

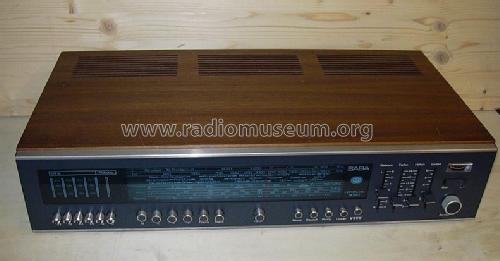

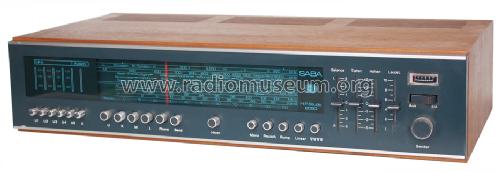

SABA; Villingen: HiFi-Studio 8050 Stereo H Mod. St 8050 H [Radio] ID = 738725 933x342
Select picture or schematic to display from thumbnails on the right and click for download.
For model HiFi-Studio 8050 Stereo H Mod. St 8050 H, SABA; Villingen

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1972 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 50:
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 8 AM circuit(s)     14 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 30 W (undistorted)
from Radiomuseum.org Model: HiFi-Studio 8050 Stereo H Mod. St 8050 H - SABA; Villingen
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 610 x 140 x 315 mm / 24 x 5.5 x 12.4 inch
Notes

ICs: 1.
HiFi-Stereo-Steuergerät. NF-Verstärker mit 2 Endstufen je 15 W (Sinus). 4 schaltbere Lautsprecherausgänge. Frequenzbereiche: UKW 88..104 MHz, KW 6..10,5 MHz, MW 520..1600 kHz, LW 150..350 kHz. 5 FM-Fixtasten. Signalanzeige über Instrument. Eingang: TA (magn./ krist.) und Tonbandgerät. Filter: Rausch / Rumpel / Linear. Schieberegler für Lautstärke, Balance, Höhen und Tiefen. Kopfhöreranschluß über Klinke (6,3 mm).

Stereo-Decoder mit IC MC1305. Grüne Skala.

Siehe auch HiFi-Studio 8050 mit 55 Transistoren, diskret aufgebautem Stereo-Decoder und weisser Skala.

Net weight (2.2 lb = 1 kg) 10.5 kg / 23 lb 2 oz (23.128 lb)
Price in first year of sale 828.00 DM
Source of data Handbuch VDRG 1972/1973
Mentioned in -- Original-techn. papers.

Model page created by Bernd P. Kieck. See "Data change" for further contributors.



All listed radios etc. from SABA; Villingen
