HiFi-Studio-Kombination 8760K

• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1975/1976

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 134078

• • Brand: Schwer & Söhne, GmbH

• Picture

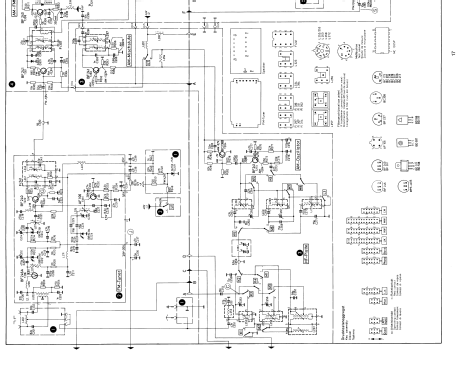

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 80

• Semiconductors

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 8 AM circuit(s)     15 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org
• Model: HiFi-Studio-Kombination 8760K - SABA; Villingen

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 685 x 185 x 365 mm / 27 x 7.3 x 14.4 inch

• Notes

• ICs: 1.
  Saba Stereo-Steuergerät 8760K.
  Ausgangsleistung: 2× 22 W (Sinus); Vierkanal-Wiedergabe möglich;
  Phono-Chassis Dual 1226 mit zwei Geschwindigkeiten (33 und 45 UpM);
  Magnetsystem Shure M75D.

  Siehe auch das ähnliche Modell HiFi-Studio-Kombination 8761K

• Net weight (2.2 lb = 1 kg)
• 16 kg / 35 lb 3.9 oz (35.242 lb)

• Source of data
• Handbuch VDRG 1975/1976

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
