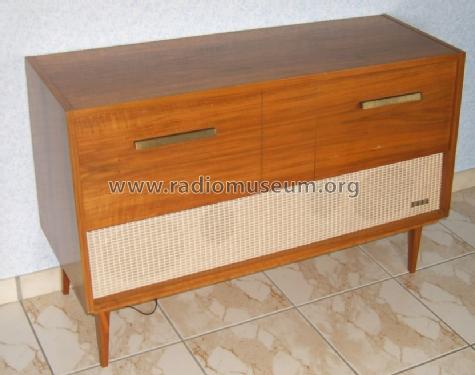

Mainau 12 Stereo Rüster

SABA; Villingen

  • Year
  • 1962/1963
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 24564
    • Brand: Schwer & Söhne, GmbH

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 460/6750 kHz
  • Tuned circuits
  • 6 AM circuit(s)     9 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 120/220 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Mainau 12 Stereo [Rüster] - SABA; Villingen
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 1060 x 695 x 405 mm / 41.7 x 27.4 x 15.9 inch
  • Notes
  • Rundfunk-Chassis = Freudenstadt 12-Stereo;
    Phono-Chassis = Dual 1008A.
  • Net weight (2.2 lb = 1 kg)
  • 40 kg / 88 lb 1.7 oz (88.106 lb)
  • Price in first year of sale
  • 1,029.00 DM
  • External source of data
  • Erb

 Collections | Museums | Literature

Collections

The model Mainau is part of the collections of the following members.

 Forum

Forum contributions about this model: SABA; Villingen: Mainau 12 Stereo

Threads: 1 | Posts: 5

Hallo,

ist die Lampe im Plattenspielerfach so original? Vom Sofa aus blendet das Leuchtmittel recht stark. Gab es da früher mal einen Blendschutz, oder saßen die Leute früher höher?

Gruß

Patrick Metzler

Patrick Metzler, 29.Jan.22

Weitere Posts (5) zu diesem Thema.
