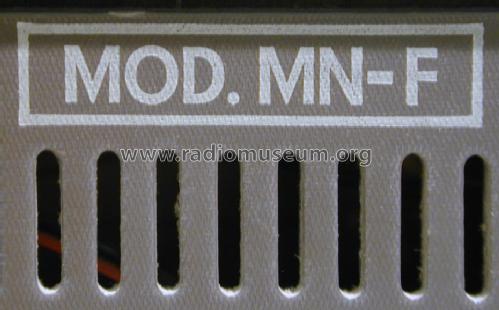

Mainau F (MN-F)

• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1969–1972

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 27618

• • Brand: Schwer & Söhne, GmbH

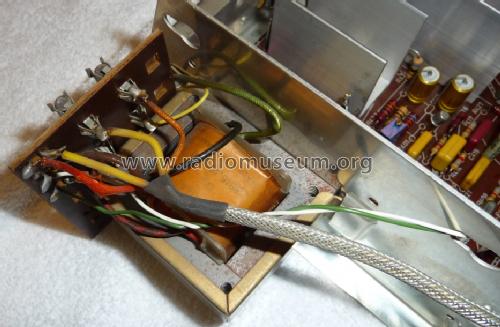

• Picture

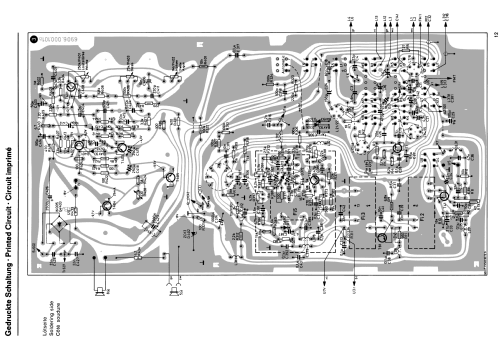

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors
• BF185 or. BF225 BF185 or. BF225 BF240 BF240 BF185 or. BF225 BF241 BC252 or. BC213 BC108 or. BC172 or. BC183 BC108 AD161 AD162 AA119 BB103 AA113 AA113 BAY93 W005

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 6 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Mainau F - SABA; Villingen

• Shape

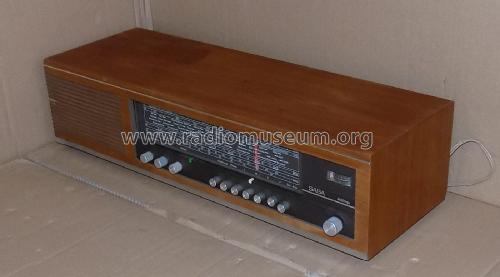

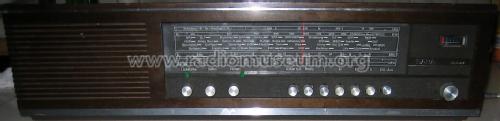

• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 610 x 153 x 204 mm / 24 x 6 x 8 inch

• Notes

• Gehäuse: Edelholz, mitteldunkel hochglanzpoliert oder Nussbaum, naturhell mattiert oder mattweiss.

  Tone Control.

• Net weight (2.2 lb = 1 kg)
• 6.4 kg / 14 lb 1.6 oz (14.097 lb)

• External source of data
• erb

• Source of data
• Handbuch VDRG 1969/1970

• Mentioned in
• Handbuch VDRG 1970/1971

• Literature/Schematics (1)
• -- Schematic (Schemario Radio Autoradio Mangianastri edizioni "Il Rostro" Italy, March 1971.)
