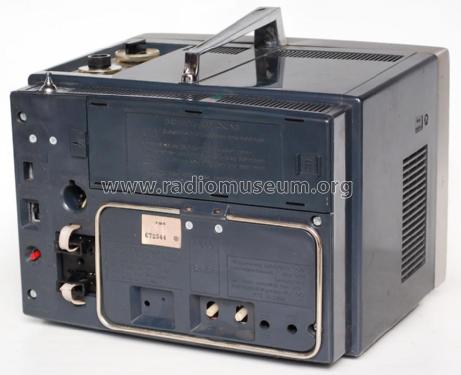

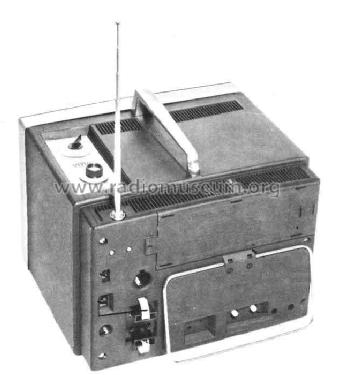

For model Schauinsland P128G, SABA; Villingen

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1971 Category: Television Receiver (TV) or Monitor
Valves / Tubes 1: A28-13W
Semiconductors (the count is only for transistors) 27: AD149 AF106 AF109 AF139 AF239 BC115 BC118 BC119 BC125 BC126 BC222 BD111 BF158 BF163 BF174 BU100 IW9288 IW12134 AA119 AAZ17 BA129 BA145 BY118 BYX10 OA90 OA91 SD92 SFD108 TV11 10DZ 1Z7,5T10 TAA611
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Line / Storage batteries (perhaps also batteries) / 125; 220 / 12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Schauinsland P128G - SABA; Villingen
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 270 x 225 x 305 mm / 10.6 x 8.9 x 12 inch
Notes

Saba P128G

  • 28 cm s/w TV
  • CCIR B/G
  • VHF und UHF Tuner (Ch 2-12, 21-69)
  • 27 Transistoren (ohne Batterie-Einsatz)
  • 19 Dioden (ohne Batterie-Einsatz)
  • 1 IC TAA611B
  • Kopfhöreranschluß
  • 2 eingebaute Antennen
  • Antenneneingang 240 Ohm symmetrisch
  • Lautsprecher 13x7 cm
  • Gewicht
    • Gerät 8 kg
    • Batterieeinsatz 2,6 kg
  • Ausführungen in
    • rot
    • anthrazit
    • ocker
    • brillantweiß

Für den Batteriebetrieb wird ein Batterieeinsatz benötigt. Er ist mit 4 Transistoren AC125, 2 x AC128 und AD149, sowie mit einer Diode 1Z14TD bestückt. Diese Halbleiter sind nicht in der Bestückungsangabe genannt und nicht mitgezählt.

Transistoren / Dioden jew. nur einmal je Typ gelistet.

Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)
Price in first year of sale 548.00 DM
Literature/Schematics (1) -- Original-techn. papers.
