Regiemixer 100

SABA; Villingen

  • Year
  • 1959–1961
  • Category
  • Miscellaneous (Other, Various) - see notes
  • Radiomuseum.org ID
  • 22487
    • Brand: Schwer & Söhne, GmbH

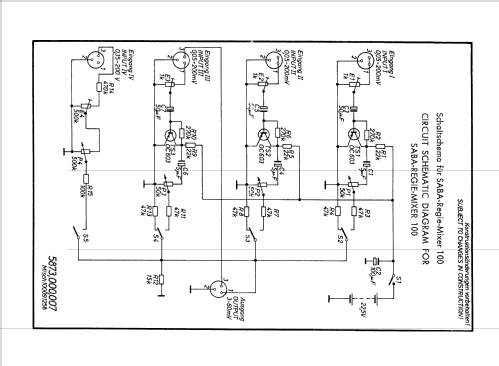

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 3
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Dry Batteries / 22,5 Volt
  • Loudspeaker
  • - For headphones or amp.
  • from Radiomuseum.org
  • Model: Regiemixer 100 - SABA; Villingen
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 215 x 80 x 166 mm / 8.5 x 3.1 x 6.5 inch
  • Notes
  • 4 Eingänge,
    Ausgang 15 kOhm/60 mV;
    Frequenzbereich 20-20000 Hz.

  • Net weight (2.2 lb = 1 kg)
  • 1.3 kg / 2 lb 13.8 oz (2.863 lb)
  • Price in first year of sale
  • 148.00 DM
  • External source of data
  • Erb
