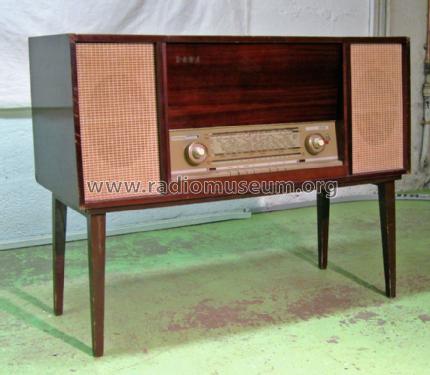

Reichenau 12 Stereo; SABA; Villingen (ID = 1282931) Radio
Use red slider bar for more.
Reichenau 12 Stereo; SABA; Villingen (ID = 32713) Radio
SABA; Villingen: Reichenau 12 Stereo [Radio] ID = 32713 693x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Reichenau 12 Stereo mattiert, SABA; Villingen

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1962/1963 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EBF89 ECC83 EM84 ELL80
Main principle Superheterodyne (common); ZF/IF 460/6750 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 120/220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Reichenau 12 Stereo [mattiert] - SABA; Villingen
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 930 x 730 x 390 mm / 36.6 x 28.7 x 15.4 inch
Notes Rundfunk-Chassis = Freudenstadt 12 Stereo;
Phono-Chassis = Perpetuum-Ebner PE66.
Net weight (2.2 lb = 1 kg) 29 kg / 63 lb 14 oz (63.877 lb)
Price in first year of sale 809.00 DM
External source of data Erb
Source of data Handbuch VDRG 1962/1963


All listed radios etc. from SABA; Villingen
Here you find 1564 models, 1425 with images and 1048 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
SABA; Villingen: Reichenau 12 Stereo
Threads: 1 | Posts: 1
Hits: 1859     Replies: 0
saba: 12 Stereo; Reichenau
Werner Schaffner
07.Dec.03
  1

Hallo Radiosammler,

ich stelle fest, dass man wenig über Plattenspieler findet. Wie kommt man zu Informationen (Funktion, Einstellungen, Bedienung) von Plattenwechslern wie der PE 66 in der Truhe SABA Reichenau 12?
